Question 1

Which trouble-shooting tool can be used to investigate PPM issues?

Alist trace station

BtraceSM

Clist trace tac

DSIP tracer_asset log

Answer : B

Question 2

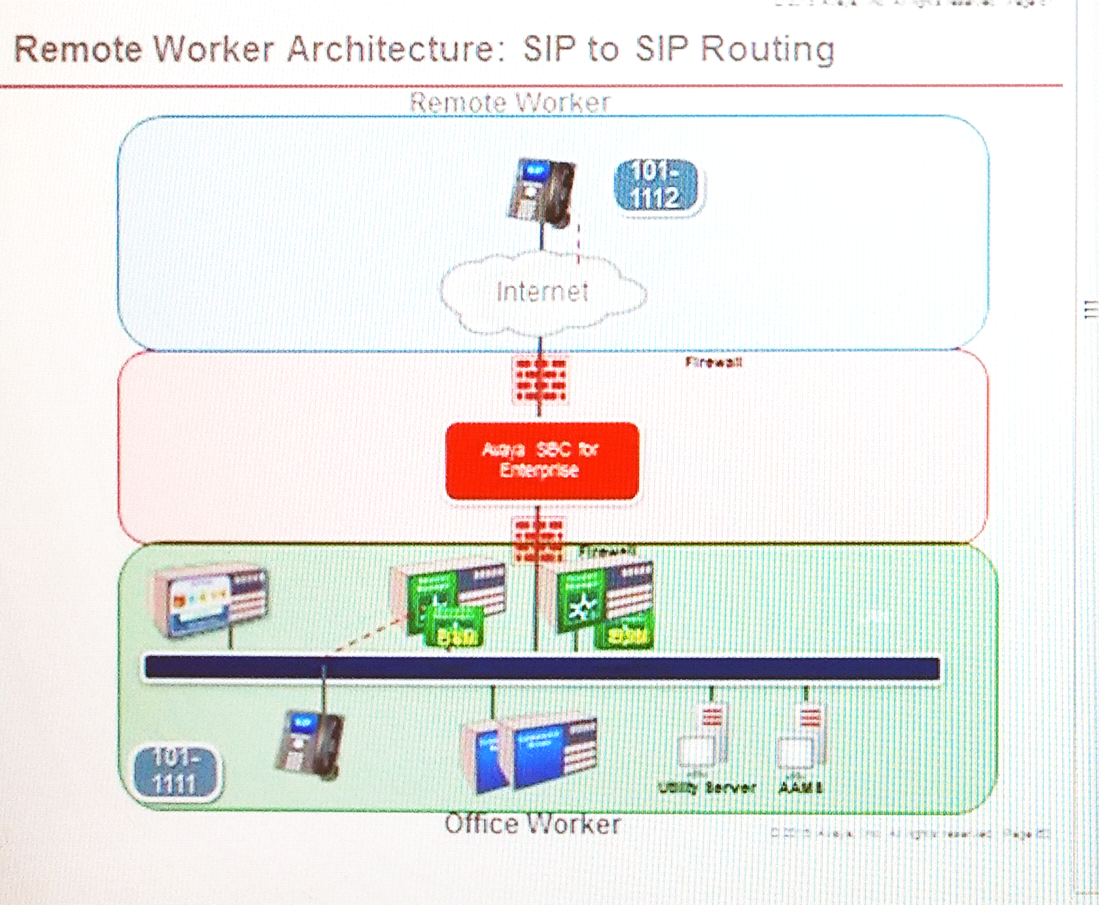

Refer to the Exhibit.

Which two statements about a call from AST 1011111 to Remote Worker AST 1011112 are true? (Choose two.)

AAvaya Session Border Controller for Enterprise (SBCE) periodically sends SIP Options to 1011112 looking for a 200 ok response to check it is reachable.

BSIP Signaling traverses the Avaya Session Border Controller for Enterprise (SBCE) and the Media must bypass the SBCE.

CAs far as Avaya Aura Session Manager (SM) is concerned, all Remote Worker phones are registering from an IP address equal to the Avaya Session Border Controller for Enterprise (SBCE) Remote Worker Private IP address.

DAvaya Session Border Controller for Enterprise (SBCE) needs to be built as a trusted SIP Entity and Entity link for remote workers.

EThe configuration of a Remote Worker AST is the same as an Office Worker AST in the Avaya Aura System Manager (SMGR) user profiles.

Answer : C, E

Question 3

Which statement about Interfaces and IP addresses on an Avaya Session Border Controller for Enterprise (SBCE) used for SIP-Trunking and Remote Worker services is true?

ASIP Trunking and Remote Worker services can use different IP addresses configured on the same Interface.

BSIP-Trunking and Remote Worker services can share the same IP address.

COnly one IP-address should be configured per interface.

DSIP-Trunking and Remote Worker services cannot run on the same SBCE.

Answer : A

https://support.avaya.com/ext/index?page=content&id=SOLN341386

Question 4

Refer to the Exhibits.

The SIP call flow made from an Avaya Communicator Remote Worker is on the left, and the call flow made from a 96X1 telephone Remote Worker is on the right.

When comparing the two call flows, which statement is true?

AThere is no difference between the two.

BAvaya Aura Communication Manager does full call model processing for the SIP-to-SIP call flow and does half-call model processing for the SIP-to-Communicator call flow.

CThe Communicator does not register to Avaya Aura Session Manager.

DThe Communicator registers to Avaya Session Border Controller for Enterprise (SBCE).

Answer : A

Question 5

After an Avaya Aura Communication Manager (CM) upgrade, a customer called Avaya support because their SIP telephones were unable to login. Support was able to confirm that the telephones had not been upgraded.

Which pre-implementation step was omitted?

AProvide accurate licensing specification.

BVerify version installed is compatible with existing versions.

CTest all third-party equipment and software.

DAccess support.avaya.com to verify customer systems compatibility.

Answer : B

Question 6

A remote worker using the Avaya Communicator on the smart mobile phone obtains a private IP address delivered from the corporate network over WiFi when in range of the wireless hot-spot. When the remote worker is out of range of the corporate WiFi it obtains a Public IP address via the 3G/4G mobile Service Provider.

When roaming from the public network to the corporate private network and vice versa, which strategy prevents the user from having to change the SIP Proxy Server address in the smartphone?

ANetwork Address Translation (NAT)

BAvaya Session Border Controller for Enterprise (SBCE) public IP-address

CSplit Horizon DNS with FQDN

DVirtual Private Network (VPN)

Answer : C

Question 7

A customer reports that several Remote Worker new hires were trying to call co-workers in the office, but noticed their feature buttons were not working. After running a SIP trace, the administrator did not see any PPM Responses coming from Avaya Aura Communication Manager (CM).

After looking at how the call flow is supposed to go, the administrator looked at the SIP communication profile and saw that CM had not been administered as a sequenced application.

If CM had been added to the endpoint's SIP Communication Profile as a Sequenced Application, which step was missing in the call flow?

APPM is downloaded to the Remote Worker telephone from Avaya Aura Session Manager (SM) via Avaya Session Border Controller for Enterprise (SBCE).

BPPM is downloaded to Avaya Aura Session Manager (SM) from CM.

CPPM is downloaded to the Remote Worker telephone from Avaya Aura System Manager (SMGR).

DPPM is downloaded to the Remote Worker telephone from CM.

Answer : A
