Blue Prism Designing Blue Prism Process Solutions ASD01 Exam Questions

Consider the following steps for a theoretical manual process

* Check in input folder for any new files.

* If there are no files check again later as files can arrive anytime, and there is no limit to the number of files that may come.

* Open the next available file.

* Take the first case

* Start System X and find the case details.

* If the case can't be found, move to the next one.

* After finding the case in System X. fetch additional case details from System Y.

* Again if the case can't be found, move to the next one

* Analyse all the data to see if System Z should be updated.

* If the data does not meet the requirements, add notes indicating this to Systems X and Y and move to the next case

* If the data does meet the requirements, update the case in System Z

* Add notes to Systems X and Y and move to the next case.

* At the end of the file, go back and look for another

* Stop checking for new files at 16:00 and finish any remaining cases.

* When all work is complete create a report of the day's exception cases.

* Close down Systems X, Y and Z.

If the volume of incoming cases is such that 1 Resource PC can easily handle the workload, which of the following steps for an automated solution should be part of the 'Preparation' phase of an automated process?

MedBank have recently introduced a new Credit Card platform Cred+ There is a requirement to migrate account and card details from the existing banking platform PCBS on to Cred+-

Account IDs of the cases requiring data transfer will be held on a SQL database The requirement is that, for each account ID specified on the SQL database, the following data must be read from the PCBS application and input into the Cred+ application:

* Account ID

* Product Type

* Name

* Address

* Date of Birth

* Card PAN (Primary Account Number or credit card number)

* Card Issue Date

* Card Expiry Date

Once the data has been successfully input into Cred+ the correct record on the SQL database will be updated to indicate data transfer is complete. All work queues will be encrypted, however due to the sensitivity of the dat

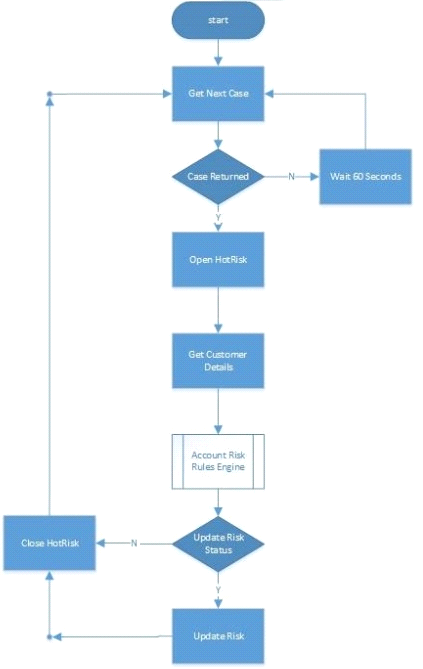

a. MedBank insist that a single robot account does not have access to both PCBS and CRED+ systems. The following high level design has been proposed:

Which of the following statements about the solution design are correct? (select 2 responses)

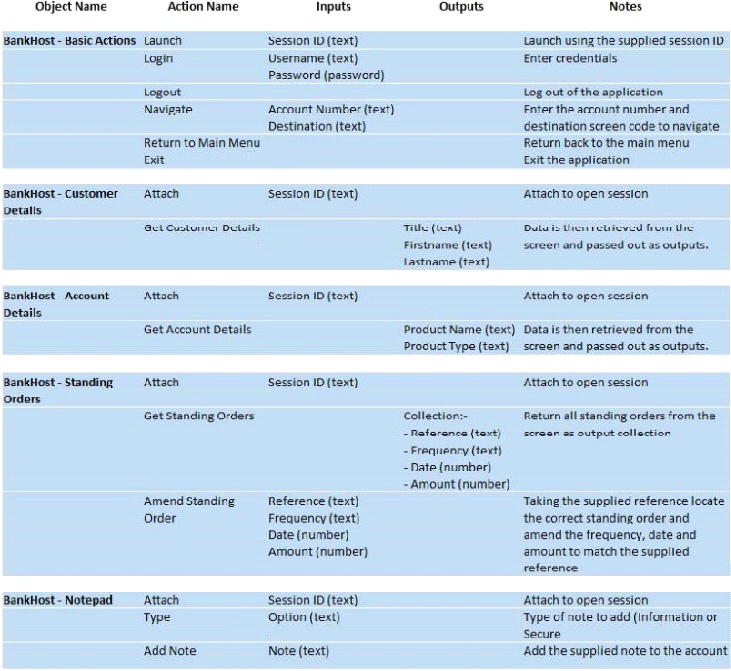

The following Object Design has been created for a mainframe banking application.

Which of the following statements about the Object design above are correct? (select 2 responses)

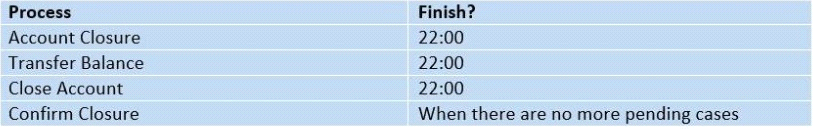

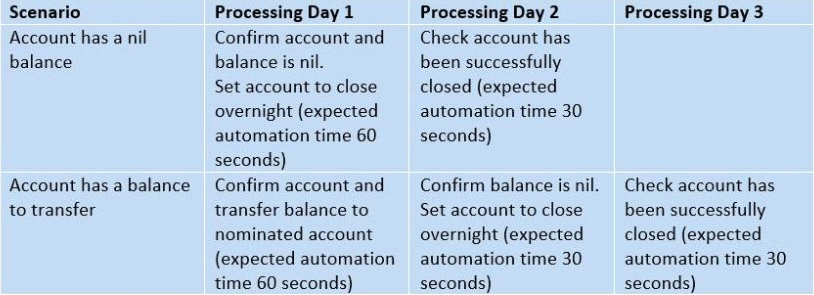

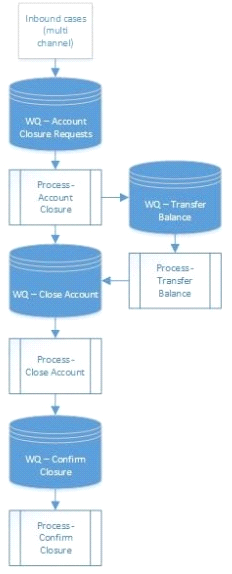

Which of the following statements about using Work Queue designs to split a business process into a multi part robotic solution is correct?

1. Using multiple Work Queues and Processes for the different stages of the business process is a valid design option to split a business process into a multi part robotic solution

2 Using a single Work Queue and deferring cases for future processing is a valid design option to split a business process into a multi part robotic solution

3. Using an item's status to control when to work it is a valid design option to split a business process into a multi part robotic solution

4. You cannot split a business process into a mufti part robotic solution

Consider the following steps for a theoretical manual process

* Check in input folder for any new files.

* If there are no files check again later as files can arrive anytime, and there is no limit to the number of files that may come.

* Open the next available file.

* Take the first case

* Start System X and find the case details.

* If the case can't be found., move to the next one.

* After finding the case in System X. fetch additional case details from System Y.

* Again if the case can't be found, move to the next one.

* Analyse all the data to see if System Z should be updated

* If the data does not meet the requirements, add notes indicating this to Systems X and Y and move to the next case

* If the data does meet the requirements, update the case in System Z

* Add notes to Systems X and Y and move to the next case.

* At the end of the file, go back and look for another

* Stop checking for new files at 16:00 and finish any remaining cases.

* When all work is complete create a report of the day's exception cases.

* Close down Systems X, Y and Z.

If it is imperative that notes are applied to System X and Y, regardless of whether System 2 is updated or not, what could the process do? (select 2 responses)

It's technically possible for one business object to call another Outside of using utility objects are any of the following valid reasons why you would want to do this?

SanQuest Bank's call centre regularly receives requests from customers for the exact amount required to clear their loan This is a complicated calculation that is prone to human error. The bank has decided to use Blue Prism to perform the calculation and is considering amending its front end system OneBase to allow a user to click a button to request a Loan Consolidation Amount. They plan to communicate with Blue Prism using web services Consider the two proposed designs:

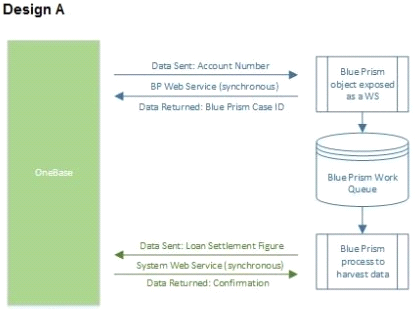

Here a Blue Prism object is exposed as a web service OneBase calls this service providing the account number The Blue Prism object add the case to a work queue and then returns the Case ID to complete the web service call

A Blue Prism process works the queue and harvests the data required to perform the calculation. The same Blue Prism process calls a OneBase web service and provides the loan settlement figure. OneBase completes the web service call by returning a success flag.

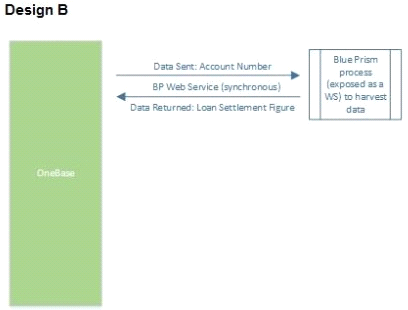

Here the Blue Process that harvests the data is exposed a web service with the loan settlement figure as an output. OneBase calls the web service and provides the account number. The Blue Prism process harvests the data and completes the web service call by providing the loan settlement figure.

Considering Blue Prism best practice which of the following statements is correct?
