Question 1

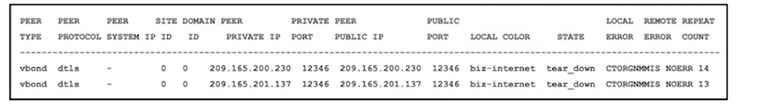

Refer to the exhibit.

Refer to the exhibit Cisco SD-WAN is deployed with controllers hosted in a data center All branches have WAN Edge devices with dual connections to the data center one via Internet and the other using MPLS Three branches out of 20 have issues with their control connections on MPLS circuit The local error refers to Control Connection Failure Which action resolves the issue*?

ARectify any issues with the underlay routing configuration

BMatch the TLOC color on the controllers and all WAN Edge devices

CMatch certificates for the DTLS connection and Root CA must be installed first on WAN Edge devices

DUpdate the system IP on vManage and then resend it to the controllers

Answer : A

Question 2

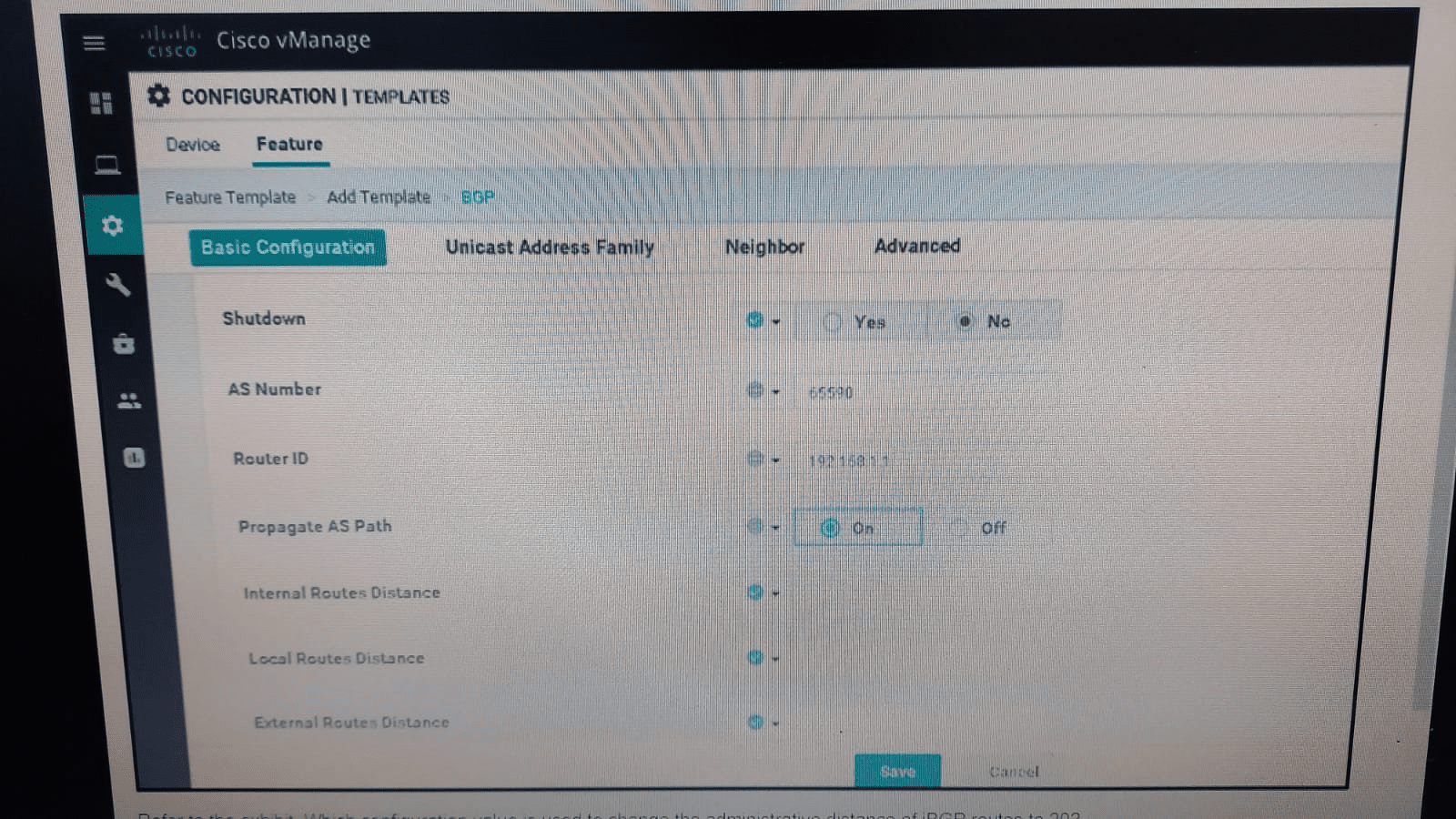

Refer to the exhibit.

Refer to the exhibit. Which configuration value is used to change the administrative distance of iBGP routes to 20?

AConfigure internal Routes Distance to 20

BConfigure Propagate AS Path to off

CConfigure Local Distance to 20

DConfigure External routes distance 20

Answer : C

Question 3

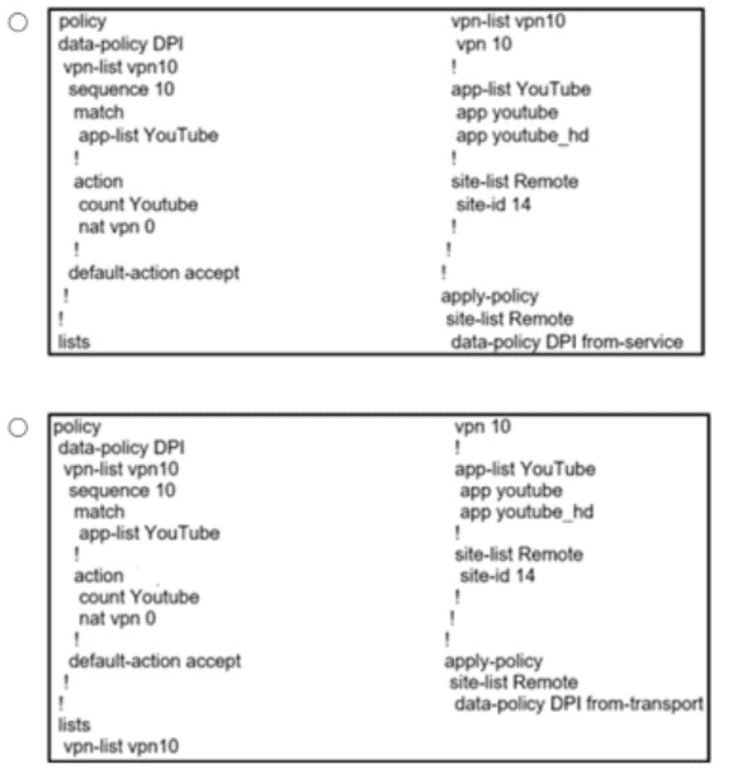

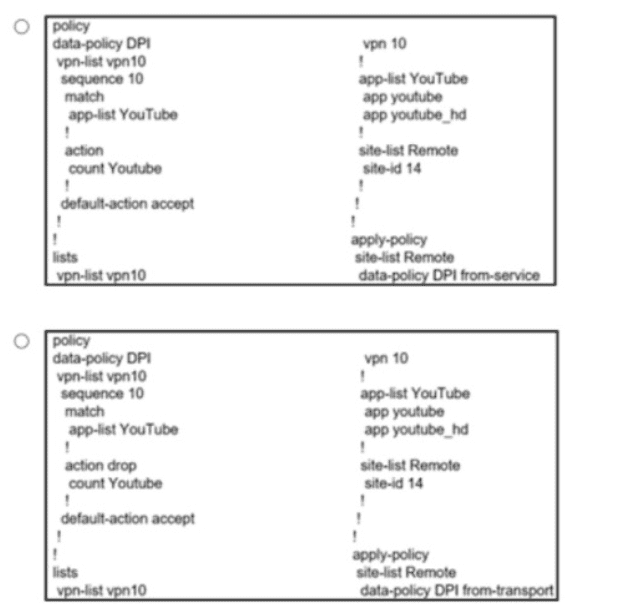

Which configuration change allows direct internet access at the branch site for YouTube traffic?

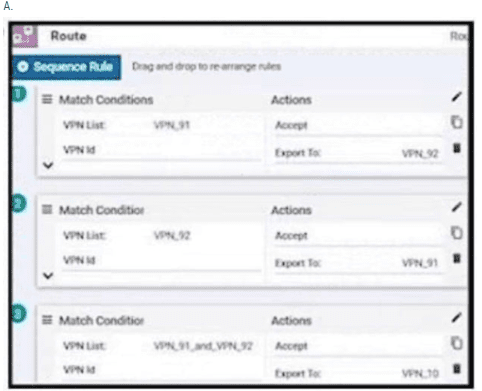

AOption A

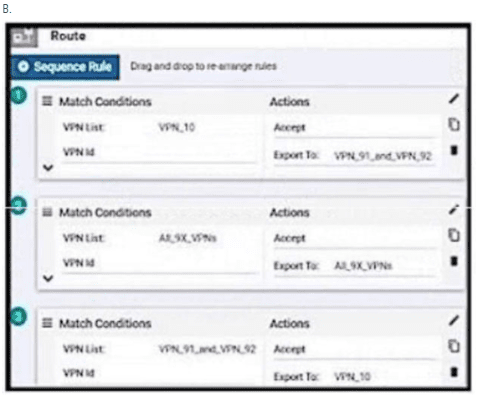

BOption B

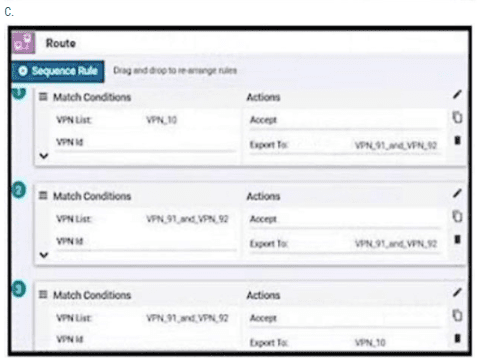

COption C

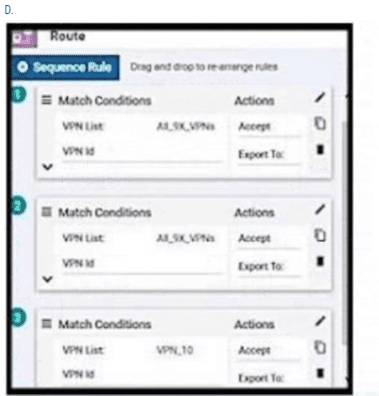

DOption D

Answer : A

Question 4

What are the two requirements for plug-and-play provisioning on Cisco IOS XE SD-WAN devices? (Choose two.)

AThe gateway router for the WAN Edge device must be able to reach devicehelper.cisco.com.

BThe gateway router for the WAN Edge device must be able to reach public DNS servers.

CThe gateway router for the WAN Edge device must be able to reach ztp.viptela.com.

DDevices at branch offices must be able to reach the Cisco SD-WAN vSmart controller at the headquarters site.

EThe WAN Edge device must have a valid certificate.

Answer : D, E

Question 5

Which two WAN Edge devices should be deployed in a cloud? (Choose two.)

AvEdge 5000v

BASR 1000v

CCSR 1000v

DvEdge 100wm

EvEdge cloud

Answer : C, E

Question 6

Which component of the Cisco SD-WAN control plane architecture facilitates the storage of certificates and configurations for network components?

AvSmart

BvBond

CWAN Edge

DvManage

Answer : D

Question 7

Which attributes are configured to uniquely Identify and represent a TLOC route?

Asystem IP address, link color, and encapsulation

Bfirewall, IPS, and application optimization

Csite ID, tag, and VPN

Dorigin, originator, and preference

Answer : A

https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/CVD-SD-WAN-Design-2018OCT.pdf
