Question 1

Refer to the exhibit.

Refer to the exhibit. A network engineer configured three new PE routers to expand the network. The new routers run in the IS-IS routing protocol and reside in the data center in the same exchange as the existing routers. However, the network is now experiencing suboptimal routing. The Layer 2 configuration and VLANs are configured correctly to provide segregation between networks, but the Level 1 routes are not being converted to Level 2 routes. Which action resolves the issue?

AOn Router 1, redistribute the routes into IGP.

BOn Router 1, summarize internal routes between areas.

COn Router 2, redistribute the routes into IGP.

DOn Router 2. summarize internal routes between areas.

Answer : D

Question 2

Which cost is the default when redistributing routes from BGP to OSPF?

A20

Cinfinite

Dautomatic

Answer : B

Question 3

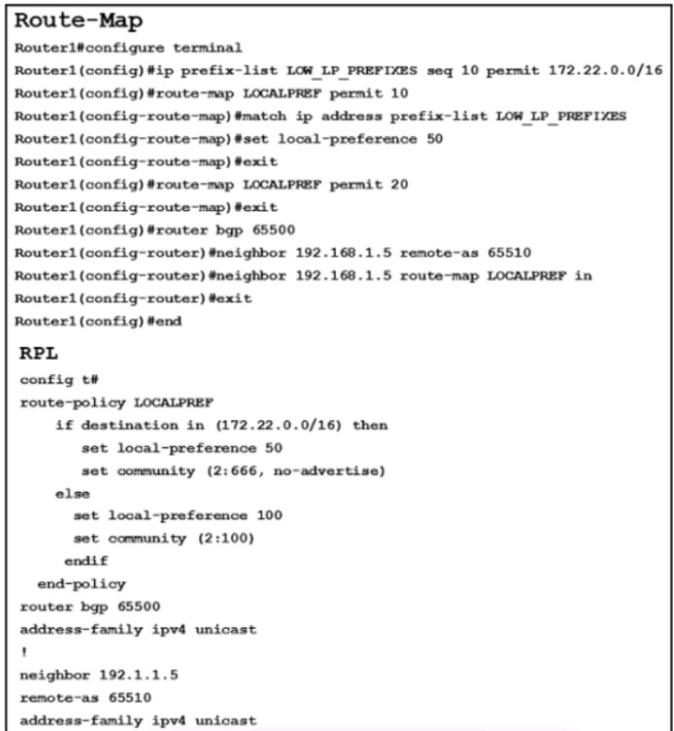

You have configured routing policies on a Cisco IOS XR device with routing policy language. Which two statements about the routing policies are true? (Choose two.)

AThe routing policies affect BGP-related routes only.

BIf you make edits to an existing routing policy without pasting the full policy into the CLI, the previous policy
is overwritten.

CYou can change an existing routing policy by editing individual statements.

DThe routing policies are implemented in a sequential manner.

EThe routing policies are implemented using route maps.

Answer : C, D

Question 4

Which two routing protocols have extensions capable of running SRv6? (Choose two.)

AOSPF

BBGP

CRIP

DIGRP

EEIGRP

Answer : A, B

Question 5

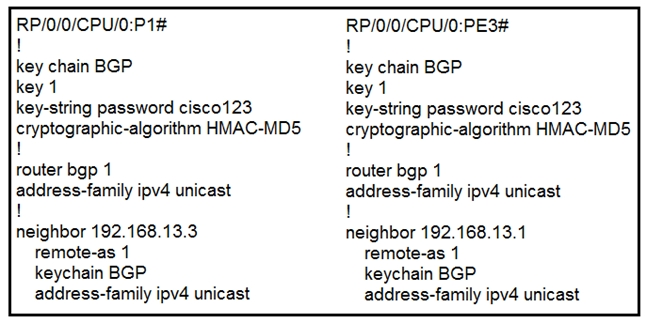

Refer to the exhibit.

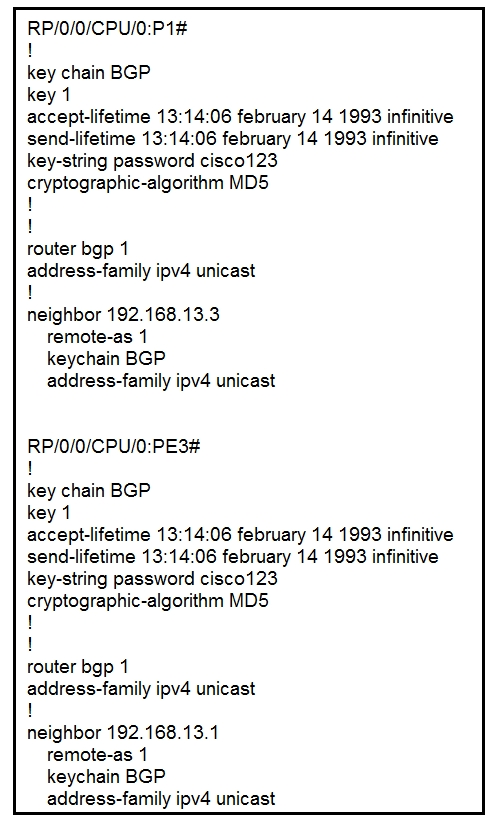

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration

applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers

can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)

AChange MD5 to HMAC-SHA1-12

BChange MD5 to HMAC-ESP

CChange MD5 to SHA-1

DChange MD5 to HMAC-MD5

ERemove the send and accept lifetime under key 1

Answer : A, D

sc40crsbook_chapter5.html

Question 6

Refer to the exhibit.

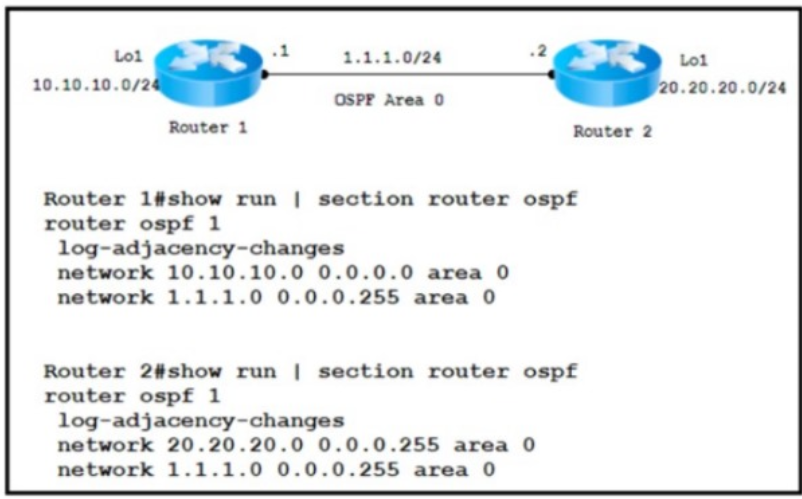

A network engineer at a large ISP with an employee ID 4876 94 052 started to configure OSPF on two routers The engineer notices that router 1 learned about network 20 20 20 0/24 from router 2, but router 2 did not learn about 10.10 10.0/24 from router 1 Layer 2 and Layer 3 connectivity are working between the two routers and the physical connection between the devices is functioning. Which action must the engineer take to resolve the issue?

AReplace the router 1 OSPF network configuration with network 10.10.10.0 0.0.0.255 area 0.

BOn router 1 configure a route map with a distribution list for the 10 10.10 0/24 network.

CReplace the router 2 OSPF network configuration with network 10.10.10.0 0.0.0.255 area

DOn router 2 configure a route map with a distribution list for the 101010 0/24 network

Answer : A

Question 7

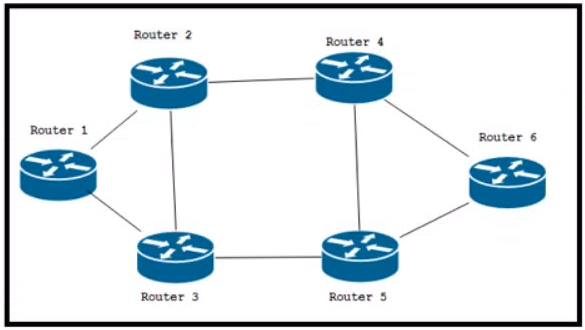

Refer to the exhibit.

Router 1. Router 2. and Router 3 are co-located in an onsite data center of an office, but Router 4. Router 5. and Router 6 are installed in another data center 'eral miles away A network engineer is troubleshooting an RSVP-TE issue on the network On most of the devices, the engineer can move all LSPs away from a selected interface and take it down for maintenance without interrupting traffic. However, when an interface on Router 3 is taken down, traffic on the network is disrupted What must the engineer enable to resolve the issue on Router 3?

AFRR

BNSR

Csoft-preemption feature

Dsoft-disperse feature

Answer : C
