Cisco 300-625 DCSAN Exam Questions Instant Access

Question 1

A storage administrator is configuring inter-VSAN routing on a fabric that contains duplicate domain IDs. Which feature must be configured to ensure continued operation?

Aauto topology

Btransit VSANs

CIVR NAT

Dvirtual domains

Answer : C

Question 2

Which two protocols are used to implement SAN telemetry on Cisco MDS switches? (Choose two.)

ARPC transport

BGPB transport

CgRPC transport

DgRPC encoding

EGPB encoding

Answer : C, E

Question 3

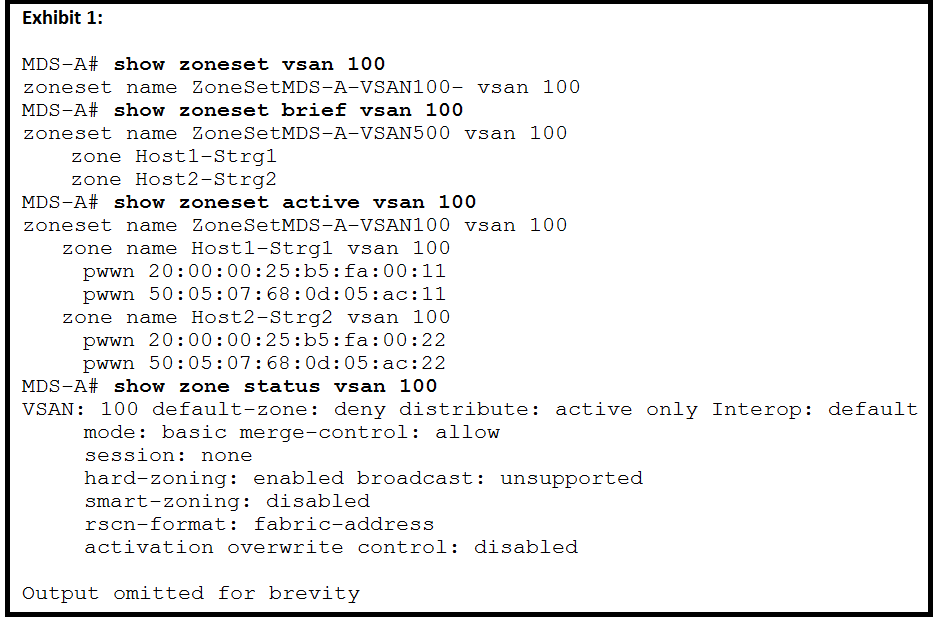

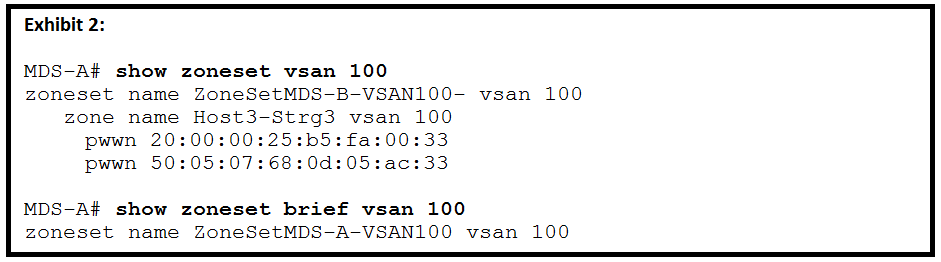

Refer to the exhibits.

A storage network engineer activates a zoneset on MDS-A and verifies the successful activation (Exhibit 1). The engineer is then notified that there is a SAN outage (Exhibit 2) What is the cause of the outage?

AAnother network engineer activated zoneset ZoneSetMDS-B-VSAN100 on MDS-A.

BAnother network engineer issued the zone mode enhanced vsan 100 command on another switch in the fabric.

CAnother network engineer activated the zoneset ZoneSetMDS-B-VSAN100 command on another switch in the fabric.

DAnother network engineer issued the zone default-zone permit vsan 100 command on another switch in the fabric.

Answer : D

Question 4

A storage administrator manually configures a storage switch to use a new static domain ID. After issuing an

fcdomain restart vsan 1 command, the administrator sees that the switch is still using the existing domain ID. What is the reason why the configuration is not working?

AStatic domain IDs apply only after a switch is rebooted.

BThe disruptive keyword was not used on the command.

CBuild fabric notifications were not sent to the other switches.

DDomain manager fast restart is not enabled on the switch.

Answer : A

Question 5

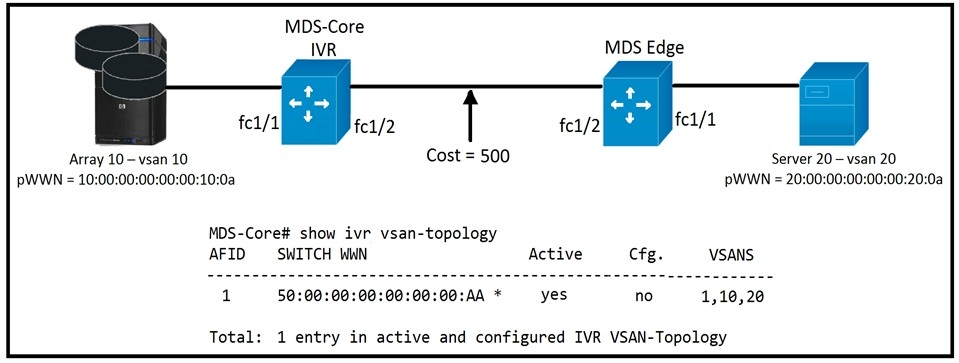

Refer to the exhibit.

An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtualizes an IVR NAT domain as shown. Which statement about the topology is correct?

AThe MDS-Core simulates an IVR NAT, and the FSPF cost is 500.

BThe MDS-Core simulates an IVR NAT, and increases the cost to 501.

CThe MDS-Core simulates an IVR NAT, and decreases the cost to 400.

DThe MDS-Core simulates an IVR NAT, and increases the cost to 600.

Answer : B

Question 6

A storage network engineer is implementing disk-array data replication between two SAN environments in two different data centers not connected via Fibre Channel. Which SAN switch feature must be implemented?

AFCIP

Bzoning merge over LAN

CVSAN scoping

DIVR

Answer : A

Question 7

A network engineer is configuring a Cisco MDS switch for FCoE. Which two conditions must be considered during the implementation phase? (Choose two.)

AOn Cisco MDS switches, system-defined class maps for class-FCoE and class-default are enabled but can be deleted.

BThe QoS policy must be identical to other Cisco FCoE switches in the network.

COn the Cisco MDS, the MTU is set equal to 2112.

DVLAN 1 or the native VLAN can be mapped to an FCoE VSAN.

EFCoE is already enabled on a Cisco MDS switch.

Answer : B, E

Cisco Implementing Cisco Storage Area Networking 300-625 DCSAN Exam Questions
