Cisco 300-815 CLACC Exam Questions Instant Access

Question 1

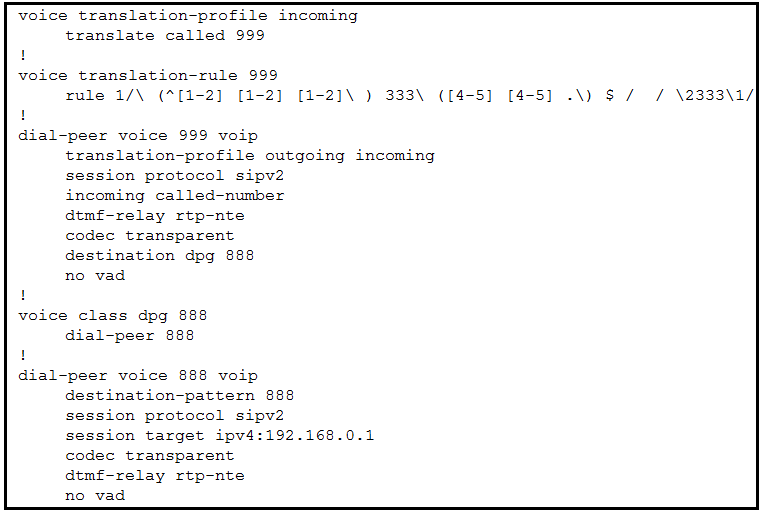

Refer to the exhibit.

Calls incoming from the provider are not working through newly set up Cisco Unified Border Element. Provider engineers get the 404 Not Found SIP message. Incoming calls are coming from the provider with called number ''222333444'' and Cisco Unified Communications Manager is expecting the called number to be delivered as ''444333222''. The administrator already verified that the IP address of the Cisco Unified CM is set up correctly and there are no dial peers configured other than those shown in the exhibit. Which action must the administrator take to fix the issue?

AChange the destination-pattern on the outgoing dial peer to match ''444333222''.

BSet up translation-profile on the incoming dial peer to match incoming traffic.

CCreate specific matching for ''222333444'' on the incoming dial peer.

DFix the voice translation-rule to match specifically number ''222333444'' and change it to ''444333222''.

Answer : B

Question 2

When an administrator troubleshoots H.323 call setup, which message gives an alert that the called party is being notified about the call?

AALERTING

BPROCEEDING

CCONNECT

DRINGING

Answer : C

Question 3

Refer to the exhibit.

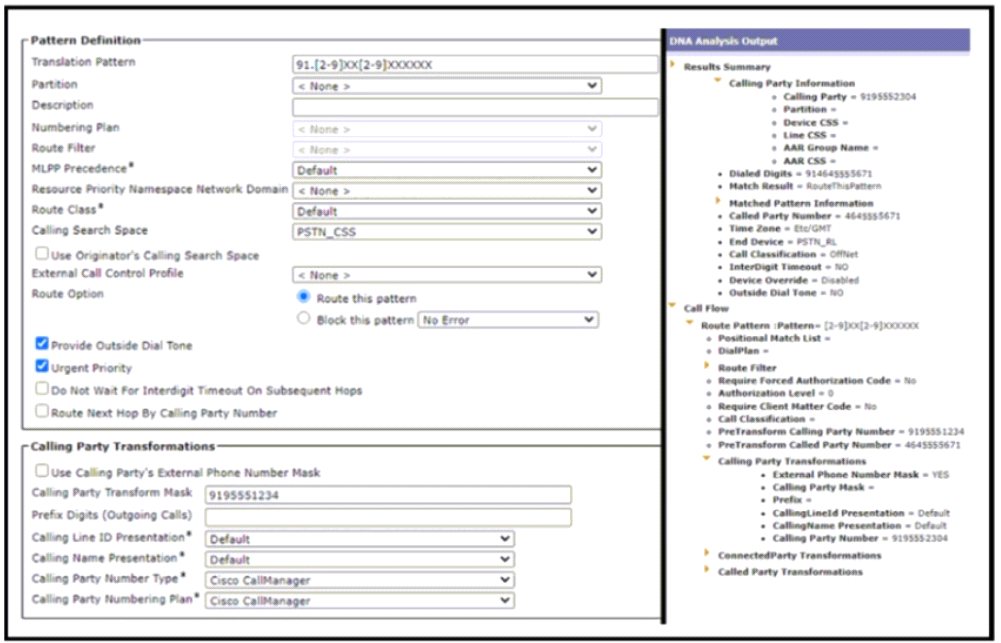

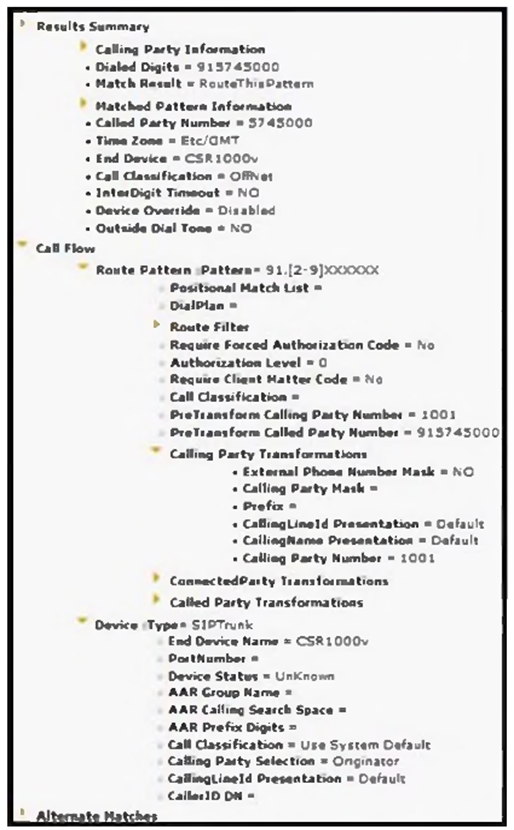

Refer to the exhibit. An administrator troubleshoots an issue where each user's 4-digit directory number is presented as the calling number when dialing out to the PSTN. This 4-digit calling number prevents the external user from calling the internal user back. Which two actions must the administrator perform to resolve the issue? (Choose two.)

AUpdate the SIP profile on the SIP trunk by checking ''enable external presentation name and number''

BChange the calling line ID presentation on the SIP trunk to allow.

CCreate a calling party transformation patter that matches the desired directory number and add a mask to modify the calling number

DCreate a called party transformation pattern that matches the desired directory number and add a mask to modify the calling number

EAdd a calling party transformation CSS to the SIP trunk.

Answer : C, E

Question 4

Refer to the exhibit.

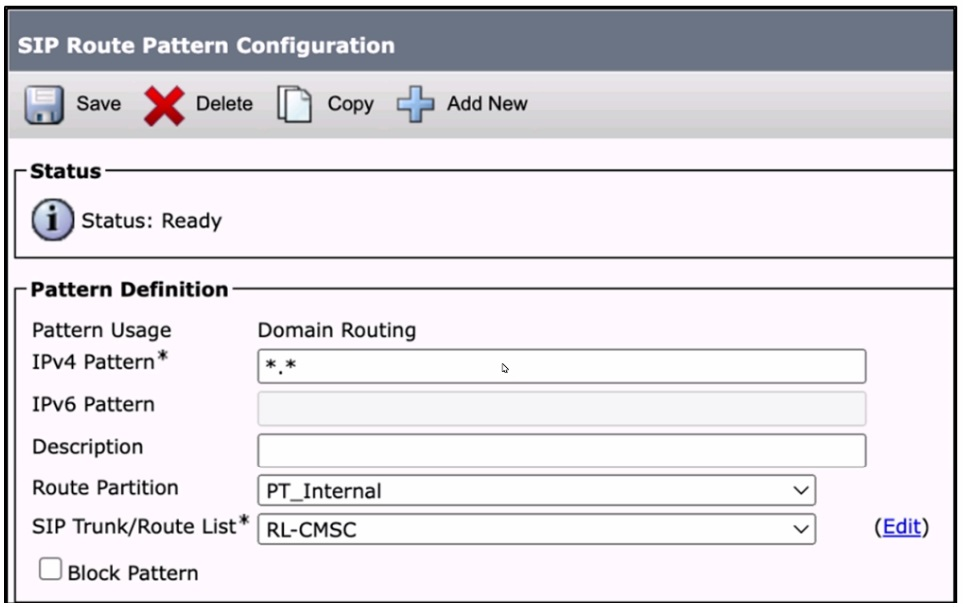

A collaboration engineer investigates an issue where the user calls that match the local Jabber domain are routed back to Cisco UCM. Which action resolves this problem?

ACheck the check box to block the pattern for the local domain.

BCreate another route SIP pattern for the local domain with the block pattern selected.

CCreate a translation pattern to block calls to the local domain.

DCreate a transformation pattern to block calls to the local domain.

Answer : B

Question 5

Refer to the exhibit.

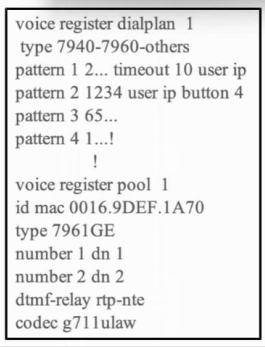

Refer to the exhibit. An engineer is implementing the Cisco UCME and must set up a dial plan for the 7961 SIP phones to recognize digit strings dialed by users.

Which code snippet completes the configuration?

A'button 1:1' under voice register pool

B'number 1 dialplan 1' under the voice register pool

C'number 1 dp 1' under the voice register pool

D'dialplan 1' under the voice register pool

Answer : A

Question 6

Some users report poor quality when they travel to another continent and make calls. This issue applies only to one continent and not to others, where typically the dialing is fast and quality is clear. Users experience the same result at home when they call the same numbers in that specific continent. It seems like some users do not exist in the correct PSTN gateway when making calls to a specific country. The company is using TEHO to save on the cost of international or long-distance calling.

They are also using a globalized dial plan. What is the cause of the issue?

ACUBE is not configured forTEHO in the specific country

BA local route group is not added to the route pattern.

CThe users are missing this specific gateway at the device pool level.

DRegions in Cisco UCM are not configured correctly.

Answer : C

Question 7

Management wants to change the initial announcements for one of the existing call hunt groups. A new set of announcement audio file was provided. Which two configuration steps must the administrator take to accomplish this change? (Choose two.)

AIdentify the MOH audio source ID associated to one of the line group member's ''Network Hold MOH Audio Source''.

BIdentify the MOH audio source ID associated to ''Network Hold Source & Announcements'' under the Queuing section of the hunt pilot.

CIdentify the configured announcement names to change under the MOH audio source section, then upload the new files to the respective announcements under the Announcement section.

DIdentify the MOH audio source ID associated to one of the line group member's ''User Hold MOH Audio Source''.

EIdentify the configured announcement names to change under the Announcement section, and assign the uploaded files to the Queueing section of the hunt pilot.

Answer : D, E
