Cisco 352-011 Exam Questions Instant Access

Question 1

Which three options are IS-IS design considerations when connecting two Layer 3 switches directly using a 10 GBASE-T cabling and formatting an IS-IS neighbor adjacency?

AThe default IS-IS network type is point-to-point so a DIS is not elected

BA DIS is elected between the IS-IS neighbors and the elected DIS is pre-empted if router with a higher system ID is connected

CThe area, levels, and interface MTU parameters must match, and system MTU must be unique for two IS-IS routers to become adjacent

DFaster IS-IS hello and dead timers increase bandwidth and CPU use, and may cause instability

EThe IS-IS hello and dead timers should be tuned to detect failures as quickly as possible

FA DIS is elected between the IS-IS neighbors and the elected Dis is pre-empted if a router with a lower system ID is connected

GThe hello and dead timers must match for two IS-IS routers to become adjacent

Answer : C, D, F

Question 2

Which two SAN designs appropriate to support large-scale SAN environments? (Choose two)

AEdge-core-edge design

BFibre Channel forwarder

CSplit fabric design

DCore-edge design

EDual fabric design

Answer : A, D

Question 3

Which option is a design consideration when using routers in a distributed hardware architecture?

ARouting information is stored in the RIB and the FIB makes forwarding decisions as programmed on the line card hardware

BAfter a link failure occurs in the core, the RIB continues to forward the traffic while FIB convergence is in progress

CBGP routes are stored in the RIB and IGP routes are stored in the FIB

DIP routes are stored in the RIB and MPLS labels are stored in the FIB

Answer : A

Question 4

The enterprise customer ABC Corp will deploy a centralized unified communications application to provide voice, and instant messaging to their branch offices. Some of the branch offices are located in remote locations and are connected via a 1.5 Mb/s Layer 3 VPN connection. Which two ways are the most cost-effective to ensure that this new application is implemented properly? (Choose two)

AUse a low bitrate codec such as G 711

BSet voice activity detection to avoid sending packets when the conversations is silent

CEnable VRF-Lite on the CE router to create a separate voice VRF

DSet LFI on the WAN connections to interleave the small voice packets with the large data packets

ESet WAN optimization on the CE router to compress the voice packets for improved bandwidth utilization and performance

FUse a low bitrate codec such as G 729

Answer : B, F

Question 5

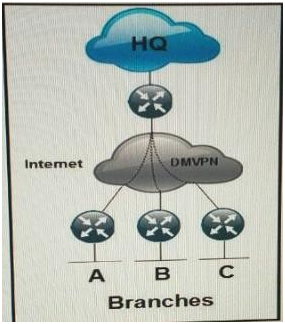

Refer to the exhibit.

Which routing solution is the most scalable to connect the branches to the HQ and to connect the branches together over the internet using DMVPN?

AEIGRP

BEIGRP with the branch routers setup as stubs

COSPF with each branch router as an ABR

DIS-IS L2 in all locations

EOSPF Area 0 in all locations

Answer : B

Question 6

Which two items are required for data plane hardening of an infrastructure device? (Choose two)

ADisable unused services

BRouting protocol authentication

CSNMPv3

DRedundant AAA servers

EInfrastructure ACLs

FWarning banners

GControl Plane Policing

Answer : A, E

Question 7

What is the definition of TOGAF framework?

AA framework for enterprise IP address management (IPAM) based on the IANA trusted IP lease allocation scheme.

BA series of tools for process improvement that uses statistical method to reduce defect in process and manufacturing.

CA framework for enterprise architecture that provides a comprehensive approach for designing planning implementing and governing enterprise information architecture.

DA five-volume framework for service management that covers design transition and delivery of service and from which the ISO 20000 was developed.

EAn ISO framework that establishes a module for network management and contains guidelines for managing object the management database and the application entity.

Answer : C
