Dell EMC Dell XtremIO Deploy Achievement D-XTR-DY-A-24 Exam Practice Test

Answer : C

When deploying Connect Home using FTPS at a customer site, the TCP ports that must be open between the XtremIO Management Server (XMS) and the Dell Technologies FTP server are 989 and 990. These ports are typically used for FTPS to secure the control channel (port 989) and the data channel (port 990).

The process for configuring these ports is as follows:

Identify FTPS Requirements: Understand that FTPS requires specific ports for secure communication. Port 989 is used for the FTPS control connection, and port 990 is used for the data transfer.

Configure Firewall Settings: On the customer's firewall, configure the settings to allow outbound connections on ports 989 and 990 to the Dell Technologies FTP server.

Verify Connectivity: After configuring the firewall, verify that the XMS can establish a connection to the Dell Technologies FTP server over these ports.

Test Connect Home Functionality: Use the Connect Home feature to ensure that the XMS can communicate securely with the Dell Technologies FTP server using FTPS.

Consult Official Documentation: For detailed instructions and best practices, refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO systems, including the deployment of Connect Home using FTPS.

By following these steps and referring to the official documentation, you can ensure that the necessary ports are open for the Connect Home feature to function correctly in an XtremIO deployment.

Answer : B

For an XtremIO X2 dual X-Brick cluster configuration without a physical XMS installed, the total number of power connectors required in a customer rack is 8. This is based on the system specifications which state that a 2 Brick Cluster requires 16 x IEC C14 power sockets1. Since the physical XMS would typically require additional power sockets, and it is not included in this configuration, the total number of power connectors needed would be less than the specified 16.

Here's the breakdown:

Each X-Brick in a dual X-Brick configuration would require power for its controllers and DAEs.

The InfiniBand switches included in a multi X-Brick system would also require power.

Without the physical XMS, which would normally need its own power connectors, the total comes down to 8 connectors required for the dual X-Brick setup1.

Answer : A

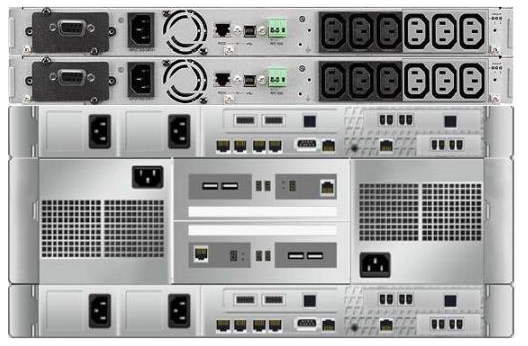

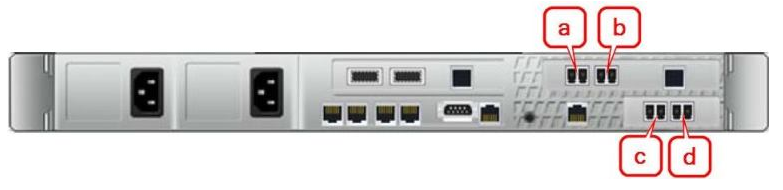

During the installation of an XtremIO X1 system, the document that should be used to identify the ports for IPMI (Intelligent Platform Management Interface) cable connections is the XtremIO Storage Array Hardware Installation and Upgrade Guide. This guide typically contains detailed information about the hardware components, including diagrams and descriptions of the ports, which are essential for correctly connecting the IPMI cables.

The process of identifying the correct IPMI ports usually involves the following steps:

Locate the Guide: Access the XtremIO Storage Array Hardware Installation and Upgrade Guide. This document is designed to provide instructions specifically related to the physical components of the XtremIO system.

Identify the Ports: Use the diagrams and descriptions within the guide to locate the IPMI ports on the XtremIO hardware. These ports are typically labeled and may be color-coded to help distinguish them from other ports.

Connect the Cables: Once the IPMI ports have been identified, connect the IPMI cables to these ports as per the instructions provided in the guide. Ensure that the connections are secure and that the cables are not obstructing any other components.

Verify the Connections: After connecting the cables, verify that the connections match the diagrams and descriptions in the guide. This step is crucial to prevent any issues related to incorrect cabling.

Reference Documentation: For the most accurate and up-to-date information, always refer to the latest version of the XtremIO Storage Array Hardware Installation and Upgrade Guide1. This ensures that any changes or updates to the hardware are taken into account during the installation process.

By following these steps and referring to the correct documentation, you can ensure that the IPMI cable connections are made correctly, which is vital for the remote management and monitoring of the XtremIO X1 system.

Answer : A

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator would start the configuration process in the ''Configuration'' section. Here's how the process typically unfolds:

Log into XMS WebUI: The administrator logs into the XtremIO Management Server (XMS) Web User Interface (WebUI).

Navigate to Configuration: Within the WebUI, the administrator navigates to the ''Configuration'' tab. This section contains settings and options for managing and configuring the storage array.

Access iSCSI Options: Under the ''Configuration'' tab, the administrator locates the options for iSCSI settings. This may involve expanding menus or selecting specific sub-options related to iSCSI.

Create iSCSI Portal: Once in the iSCSI settings area, the administrator can create a new iSCSI portal. This involves specifying details such as IP addresses, port numbers, and access controls.

Save and Apply: After entering all necessary information, the administrator saves the configuration and applies it to make the iSCSI portal active.

Verify Connectivity: Finally, the administrator verifies that the iSCSI portal is functioning correctly by connecting to it from an iSCSI initiator.

For detailed instructions and best practices, always refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO X2 arrays, including the creation of iSCSI portals.

Answer : D

When adding a user account in the XtremIO X2 XMS, the required information includes a unique user name, account type, and e-mail notification settings. Here's a detailed explanation:

Unique User Name: A unique identifier for the user account. This is essential to distinguish between different users and manage permissions accordingly.

Account Type: Specifies the level of access or role assigned to the user account, such as administrator, viewer, or custom roles with specific privileges.

E-mail Notification: Configuration settings for sending alerts and notifications to the user's e-mail address. This is important for monitoring and managing the system effectively.

Answer : D

When connecting a VMware cluster to an XtremIO array using QLogic Fibre Channel Host Bus Adapters (HBAs), the recommended value for the Execution Throttle is typically set to 4096. This setting controls the maximum number of outstanding I/O operations that can be sent to a Fibre Channel port.

Here's how to apply this setting:

Access HBA Settings: Log into the VMware host and access the settings for the QLogic Fibre Channel HBA.

Locate Execution Throttle: Find the parameter for the Execution Throttle within the HBA settings.

Set Value: Change the value of the Execution Throttle to 4096. This is the recommended setting to balance performance and resource utilization.

Save and Apply: Save the changes and apply them to the HBA. A reboot of the host may be required for the changes to take effect.

Verify Configuration: After the host is back online, verify that the new Execution Throttle setting is active and functioning as expected.

Monitor Performance: Monitor the performance of the host and the storage array to ensure that there are no adverse effects from the change.

Consult Official Documentation: For the most accurate and detailed instructions, always refer to the official Dell XtremIO Deploy Achievement document1. This document will provide the authoritative guidance on HBA settings and best practices for connecting to an XtremIO array.

It's important to note that while the value of 4096 is a common recommendation, the optimal setting may vary based on the specific environment and workload. Therefore, it's essential to refer to the latest Dell XtremIO documentation and possibly consult with Dell support for the most current and tailored advice.

Answer : D

For the integration of Oracle with XtremIO, the best practice for HBA drivers includes setting the LUN-queue depth to optimize performance. If a single host is connected to the X-Brick, the LUN-queue depth can be set to the maximum supported by the HBA, which is 256 for QLogic HBAs1. As additional hosts are added, this setting should be reduced proportionately until reaching a minimum of 32 to maintain optimal performance1.

Assess Host Connection: Determine the number of hosts connected to the X-Brick.

Set Queue Depth: For a single host, set the queue depth to 256. Adjust as necessary when more hosts are added.

Configure HBA Settings: Apply the queue depth setting in the HBA configuration.

Test Performance: Monitor the system's performance to ensure the settings are optimal.

Adjust if Necessary: If performance issues are observed, adjust the queue depth settings as needed.
