Question 1

A user's workstation has an IP phone connected to a Dell EMC N-Series switch.

What is the recommended number of VLANs that should be configured on the switch port?

Answer : C

Question 2

What is the IP protocol number, in decimal, assigned by IANA for VRRP?

A25

B112

C443

D1443

Answer : B

Question 3

What are key features of the Dell EMC N4064 or N4064F switches?

AUp to 640 Gbps switch fabric capacity and hot swap expansion module support for dual QSFP+ (8 x 10GbE)

BUp to 1.0 Tbps switch fabric capacity and up to 48-line rate 10GbE ports per switch

CUp to 1.2 Tbps switch fabric capacity and up to 64-line rate 10GbE ports per switch

DUp to 48-line rate 10GbE ports per switch and hot swap expansion module support for dual QSFP+ (8 x 10GbE)

Answer : A

https://i.dell.com/sites/csdocuments/Shared-Content_data-Sheets_Documents/en/aa/Dell_Networking_N4000_Series_SpecSheet.pdf

Question 4

If a VRRP Master router is rebooted, what is the default behavior once it comes back online?

AAn election occurs to determine which router will have the Master role

BOriginal VRRP Master will take back control of the Master role

COriginal VRRP Backup will retain the Master role

DVRRP Master role is determined by the router with the lowest MAC address

Answer : B

Question 5

Which function does a VRRP backup router perform?

ASends keepalive advertisements to the other backup routers

BProcesses and responds to ARP requests

CForwards packets to the Master with a destination IP of the virtual IP address

DReceives packets with the virtual MAC address as the destination for other backup routers

Answer : D

Question 6

Which technologies can be implemented when configuring policy-based routing?

APolicy-maps, Extended ACLs, and MAC ACLs

BPolicy-maps, Route-maps, and Extended ACLs

CRoute-maps, Extended ACLs, and MAC ACLs

DRoute-maps, Policy-maps, and MAC ACLs

Answer : B

Question 7

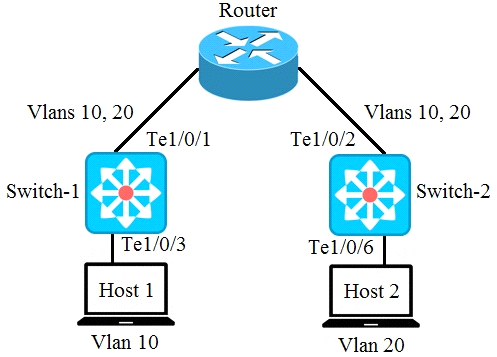

Switch-1(config)# interface tengigabitethernet 1/0/1

Switch-1(config)# switchport mode access

Switch-1(config)# switchport trunk allowed vlan 10, 20

Switch-1(config)#

Switch-1(config)# interface tengigabitethernet 1/0/3

Switch-1(config)# switchport mode access

Switch-1(config)# switchport access vlan 10

Switch-2(config)# interface tengigabitethernet 1/0/2

Switch-2(config)# switchport mode trunk

Switch-2(config)# switchport trunk allowed vlan 10, 20

Switch-2(config)#

Switch-2(config)# interface tengigabitethernet 1/0/6

Switch-2(config)# switchport mode access

Switch-2(config)# switchport access vlan 20

A network administrator is troubleshooting why Host 1 cannot communicate with Host 2.

Based on the switch output shown in the exhibit, what is the reason for the communication issue?

APort Te1/0/1 on Switch-1 is configured incorrectly

BPort Te1/0/2 on Switch-2 is configured incorrectly

CPort Te1/0/3 for Host 1 is configured incorrectly on Switch-1

DPort Te1/0/6 for Host 2 is configured incorrectly on Switch-2

Answer : A
