Question 1

What version of IGMP is required by PIM-SSM receivers?

AIGMP 1

BIGMP 3

CIGMP 2

DIGMP snooping

Answer : B

Question 2

A customer has disabled LLDP on the management interface of the switch. What is the proper command to re- enable it?

AOS10(config)# lldp enable OS10(config)#lldp transmit OS10(config)#lldp receive

BOS10(config)# interface mgmt 1/1/1 OS10(conf-if-ma-1/1/1)#lldp med enable OS10(conf-if-ma-1/1/1)#lldp timer 10

COS10(config)# interface mgmt 1/1/1 OS10(conf-if-ma-1/1/1)#lldp transmit OS10(conf-if-ma-1/1/1)#lldp receive

DOS10(config)# interface mgmt 1/1/1 OS10(conf-if-ma-1/1/1)#lldp tly-select OS10(conf-if-ma-1/1/1)#lldp dot1tlv

Answer : C

Question 3

When configuring a vrf instance for the management interface that has been in use, what step must be done first to configure it?

AConfigure a management route

BRemove the default route

CRemove all configured settings

DConfigure an IP Address

Answer : C

Question 4

Refer to the exhibit.

Where is the rendezvous point for the group 239.255.255.250?

A10.0.13.1

B10.0.14.1

Ceth1/1/54

Dvlan300

Answer : B

Question 5

Which command shows whether a LAG protocol is static or dynamic on a Dell EMC Networking OS10 switch?

Ashow lacp neighbor

Bshow running-configuration lacp

Cshow interface port-channel summary

Dshow port-channel summary

Answer : D

Question 6

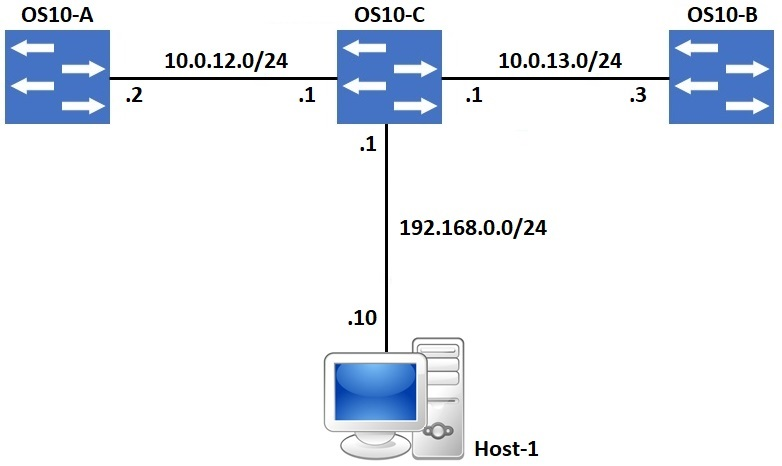

Refer to the exhibit.

A default route exists on OS10-C that points all internet traffic towards 10.0.13.3 on OS10-B. A network administrator needs to re-route internet traffic only sourced from Host-1 to 10.0.12.2 on OS10-A instead. What feature can the administrator implement to accomplish this goal?

AStatic Default Routing

BOSPF Cost Manipulation

CSource-Based Routing

DPolicy-Based Routing

Answer : D

Question 7

What is the maximum number of LLDP neighbors supported per system with OS10?

A250

B256

C384

D512

Answer : A
