F5 Networks BIG-IP ASM Specialist 303 Exam Questions

The LTM device is configured to provide load balancing to a set of web servers that implement access control lists (ACL) based on the source IP address of the client. The ACL is at the network level and the web server is configured to send a TCP reset back to the client if it is NOT permitted to connect.

The virtual server is configured with the default OneConnect profile.

The ACL is defined on the web server as:

Permit: 192.168.136.0/24

Deny: 192.168.116.0/24

The packet capture is taken of two individual client flows to a virtual server with IP address 192.168.136.100.

Client A - Src IP 192.168.136.1 - Virtual Server 192.168.136.100:

Clientside:

09:35:11.073623 IP 192.168.136.1.55684 > 192.168.136.100.80: S 869998901:869998901(0) win 8192

09:35:11.073931 IP 192.168.136.100.80 > 192.168.136.1.55684: S 2273668949:2273668949(0) ack 869998902 win 4380

09:35:11.074928 IP 192.168.136.1.55684 > 192.168.136.100.80: . ack 1 win 16425

09:35:11.080936 IP 192.168.136.1.55684 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425

09:35:11.081029 IP 192.168.136.100.80 > 192.168.136.1.55684: . ack 299 win 4678

Serverside:

09:35:11.081022 IP 192.168.136.1.55684 > 192.168.116.128.80: S 685865802:685865802(0) win 4380

09:35:11.081928 IP 192.168.116.128.80 > 192.168.136.1.55684: S 4193259095:4193259095(0) ack 685865803 win 5840

09:35:11.081943 IP 192.168.136.1.55684 > 192.168.116.128.80: . ack 1 win 4380

09:35:11.081955 IP 192.168.136.1.55684 > 192.168.116.128.80: P 1:299(298) ack 1 win 4380

09:35:11.083765 IP 192.168.116.128.80 > 192.168.136.1.55684: . ack 299 win 108

Client B - Src IP 192.168.116.1 - Virtual Server 192.168.136.100:

Clientside:

09:36:11.244040 IP 192.168.116.1.55769 > 192.168.136.100.80: S 3320618938:3320618938(0) win 8192

09:36:11.244152 IP 192.168.136.100.80 > 192.168.116.1.55769: S 3878120666:3878120666(0) ack 3320618939 win 4380

09:36:11.244839 IP 192.168.116.1.55769 > 192.168.136.100.80: . ack 1 win 16425

09:36:11.245830 IP 192.168.116.1.55769 > 192.168.136.100.80: P 1:299(298) ack 1 win 16425

09:36:11.245922 IP 192.168.136.100.80 > 192.168.116.1.55769: . ack 299 win 4678

Serverside:

09:36:11.245940 IP 192.168.136.1.55684 > 192.168.116.128.80: P 599:897(298) ack 4525 win 8904

09:36:11.247847 IP 192.168.116.128.80 > 192.168.136.1.55684: P 4525:5001(476) ack 897 win 142

Why was the second client flow permitted by the web server?

To improve application security, an LTM Specialist must configure a BIG application access. The BIG IP system to authenticate the client certificate before permitting application access. The BIG-IP system must also support the ability to red to redirect users to a certificate enrolment system without generating a browser error.

Within the Client SSL profile, which value should the LTM Specialist select for the Client Certificate option?

A configuration change is made on the standby member of a device group.

What is displayed as "Recommended Action" on the Device Management Overview screen?

There are three servers in the pool: 172.16.20.1, 172.16.20.2, and 172.16.20.3, with the virtual IP address 10.0.20.88.

A user CANNOT connect to an HTTP application. To understand the problem and find a solution, the LTM Specialist runs two concurrent traces on the LTM device, with the following results:

Trace on client side:

tcpdump: verbose output suppressed, use -v or -vv for full protocol decode

listening on 0.0, link-type EN10MB (Ethernet), capture size 96 bytes

22:22:07.423759 IP 172.16.20.100.53875 > 10.0.20.88.80: S 998346084:998346084(0) win 5840

22:22:07.424056 IP 10.0.20.88.80 > 172.16.20.100.53875: S 4671780:4671780(0) ack 998346085 win 4380

22:22:07.424776 IP 172.16.20.100.53875 > 10.0.20.88.80: . ack 1 win 365

22:22:07.424790 IP 172.16.20.100.53875 > 10.0.20.88.80: P 1:149(148) ack 1 win 365

22:22:07.424891 IP 10.0.20.88.80 > 172.16.20.100.53875: . ack 149 win 4528

22:22:12.024850 IP 10.0.20.88.80 > 172.16.20.100.53875: R 1:1(0) ack 149 win 4528

6 packets captured

6 packets received by filter

0 packets dropped by kernel

Trace on server side:

tcpdump: verbose output suppressed, use -v or -vv for full protocol decode

listening on internal, link-type EN10MB (Ethernet), capture size 96 bytes

22:22:07.424881 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380

22:22:08.424893 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380

22:22:09.625082 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380

22:22:10.825194 IP 172.16.20.100.53875 > 172.16.20.2.80: S 51116678:51116678(0) win 4380

4 packets captured

4 packets received by filter

0 packets dropped by kernel

What should the LTM Specialist do to solve the problem?

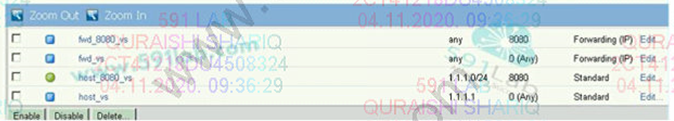

A LTM device needs to load balance active and passive FTP traffic while using only a single virtual server.

Which virtual server type should an LTM Specialist configure on the LTM device?

Refer to the exhibit.

A pool member fails the monitor checks for about 30 minutes and then starts passing the monitor

checks. New traffic is Not being sent to the pool member.

What is the likely reason for this problem?

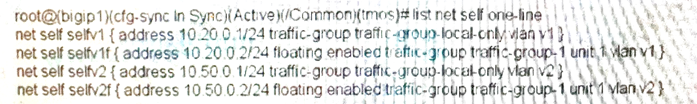

-- Exhibit --

-- Exhibit --

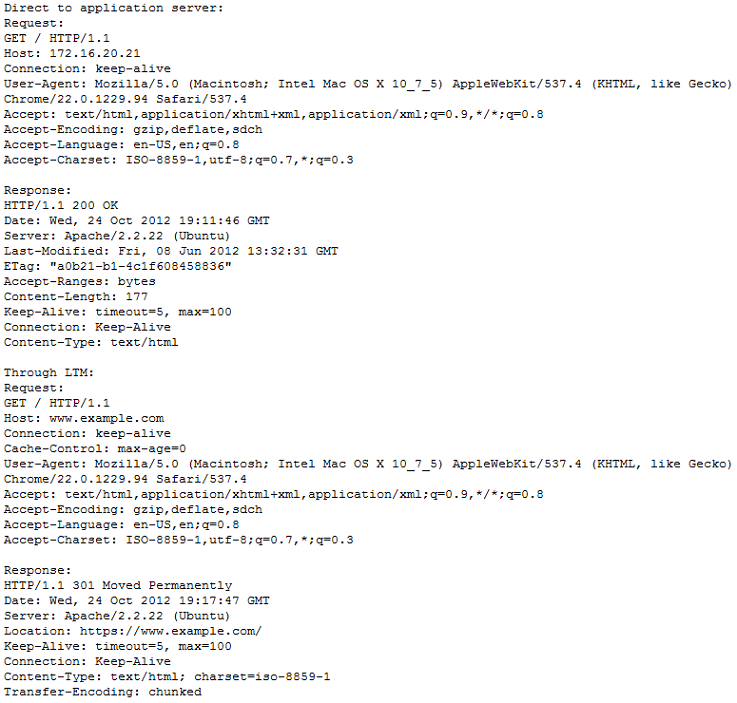

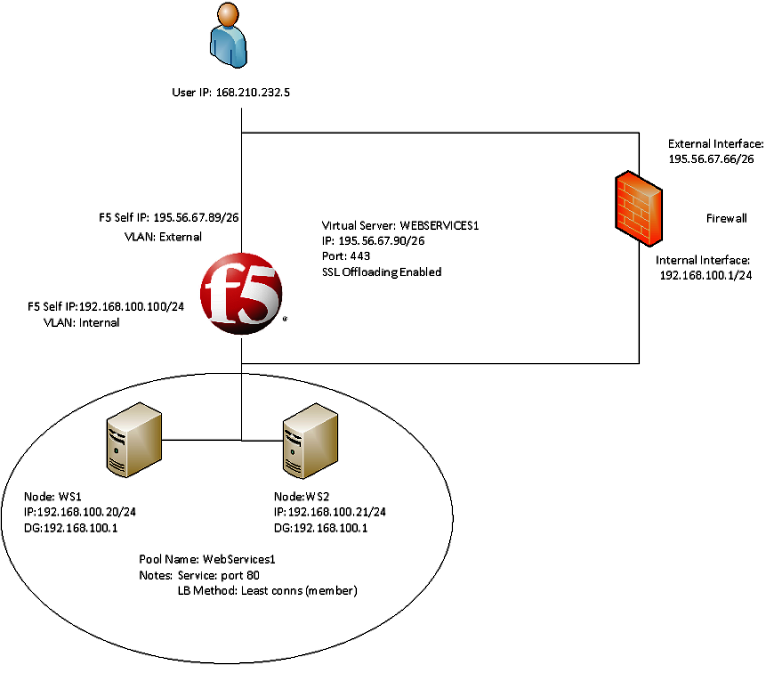

Refer to the exhibits.

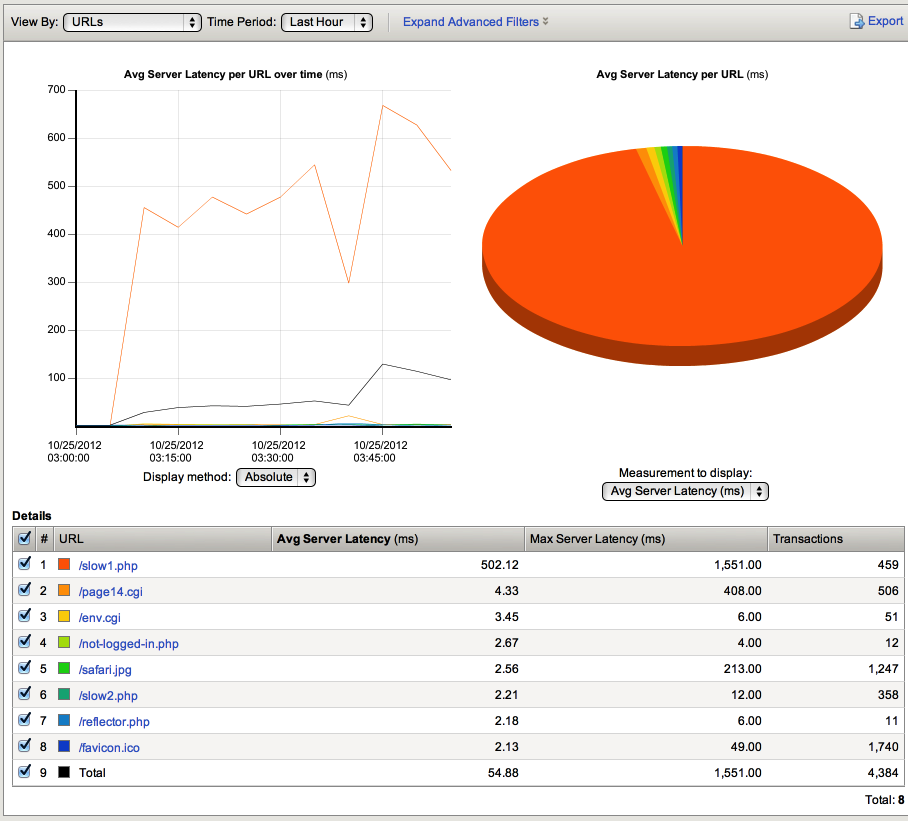

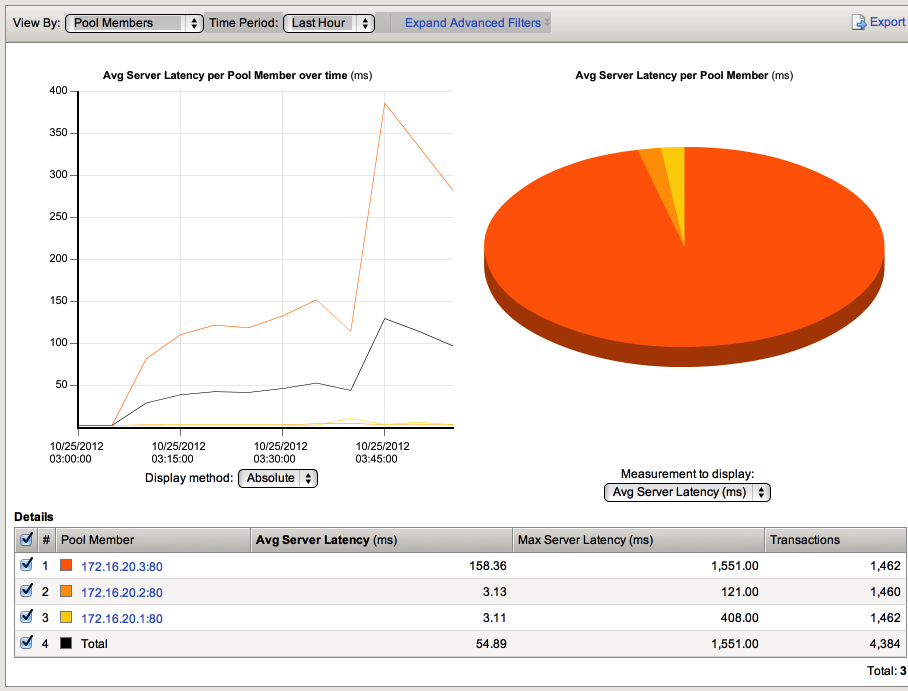

Which URL on which server is causing the highest latency for users?
