Fortinet NSE 6 - LAN Edge 7.6 Architect FCSS_LED_AR-7.6 Exam Questions

Answer : B

When FortiAPs connect to FortiGate overIPsec tunnels, this is treated similarly to WAN/MPLS deployments.

In these scenarios, FortiGate must know that CAPWAP must traverse anon-L2transport.

FortiAP profiles include:

set mpls-connection enable

This setting is required so that:

FortiGate can encapsulate CAPWAP inside the transport tunnel

Remote FortiAPs can establish CAPWAP even when behind routed/IPsec networks

Without this option, the FortiGate detects the AP butcannot bring CAPWAP UP, leaving the AP in ''discovered/unauthorized'' or ''offline'' state.

Why others are wrong

A . Static route Discovery already succeeds, so routing is not the issue.

C . Reduce MTU Sometimes useful for IPsec, but not required for CAPWAP establishment.

D . Firmware upgrade Firmware mismatch would show ''Managed (upgrade required),'' not CAPWAP tunnel failure.

Therefore,set mpls-connection enableis the required fix.

Answer : D

Context: You're troubleshootingSyslog-based SSOonFortiAuthenticator:

Devices (typically firewalls, WLAN controllers, VPN gateways) sendsyslog messagescontaining usernames, IPs, login/logout events.

FortiAuthenticator parses those logs usingSyslog SSO rulesand injects logon sessions intoFSSOfor FortiGate.

When users are not mapping correctly, you need to see:

Did the syslog message arrive?

Which matching rule (if any) caught it?

What username and IP were extracted?

Why was a message ignored or rejected?

FortiAuthenticator has a dedicated debug area for this:

Debug logs Single Sign-On Syslog SSO

This view shows:

Raw syslog lines received

Thematching ruleapplied (or ''no match'')

Parsed fields (username, IP, group)

Any parsing errors

This is exactly the tool designed totroubleshoot and diagnose Syslog SSO issues.

Why the other options are not the best for this issue

A . Debug logs > Remote Servers > Syslog Viewer

Lets you see syslog traffic in general, but doesnotshow how SSO rules are applied or why they fail. Good for connectivity checks, not SSO logic.

B . Parsing Test Tool

Useful totestpatterns and rules manually by pasting sample log lines, but it doesn't show live traffic or running SSO sessions.

C . Debug logs > SSO Sessions page

Shows existing SSO sessions (who is logged in), but notwhya particular syslog message did not create a session.

Answer : D

FortiLink device detection relies on FortiGate'sDevice IdentificationandIoT Detectioncapabilities to classify devices connected to FortiSwitch ports.

To enabledevice identificationandvulnerability detectionfor IoT/endpoint devices in LAN Edge deployments, FortiGate must subscribe to the correct FortiGuard services.

1. Required FortiGuard License for Device Identification (IoT Detection)

The FortiOS documentation clearly states:

''IoT detection service... requires anAttack Surface Security Rating service licenseto download the IoT signature package.''

Additionally:

''The following settings are required for IoT device detection:

A validAttack Surface Security Rating service licenseto download the IoT signature package.''

This service provides:

IoT signature package

IoT device classification

Device behavior profiling

This makesAttack Surface Securitymandatory for FortiLink device detection.

2. Required FortiGuard License for Device Vulnerability Detection

FortiOS further clarifies that IoT vulnerabilities require theIoT Detection license, which is included under the same Attack Surface service entitlement:

''To detect IoT vulnerabilities the FortiGate must have a validIoT Definitions license...''

The IoT Definitions license comeswith the Attack Surface Security Rating serviceand is used for:

Scanning connected devices

Identifying IoT/endpoint vulnerabilities

Reporting vulnerability severity

Enabling NAC-based remediation (VLAN steering, port isolation)

In LAN Edge Architect, this license combination is emphasized as a foundational requirement for:

FortiSwitch NAC

FortiLink device profiling

Automated quarantine actions

IoT device classification

Vulnerability-based segmentation

3. Why the Correct Answer Is Option D

OptionDlists:

FortiGuard Attack Surface Security

FortiGuard IoT Detection

These are exactly the services required per FortiOS 7.4.1:

Attack Surface Security Rating provides IoT signature package + vulnerability data

IoT Detection (Definitions) enables actual device-type and vulnerability identification

Together they powerFortiLink Device DetectionandIoT Vulnerability Detection, which are essential LAN Edge security functions.

4. Why Other Options Are Incorrect

A . Vulnerability Management + Endpoint Protection

Not used for FortiLink device detection; Endpoint detection relies on IoT service, not FortiClient.

B . Threat Intelligence + IoT Detection

Threat Intelligence (ThreatIntel DB) is used for FAZ IOC, not LAN Edge device detection.

C . Threat Intelligence + Endpoint Protection

Same issue---does not provide IoT device classification or vulnerability scanning.

LAN Edge 7.6 Architect Context Summary

In LAN Edge designs:

FortiGate acts as the controller for FortiSwitch via FortiLink.

Device detection is done at the FortiGate level using NAC/IoT signature capabilities.

Vulnerability detection enables dynamic segmentation decisions (e.g., move device to quarantine VLAN).

To support this, two licenses aremandatory:

Attack Surface Security(includes Security Rating + IoT Detection DB)

IoT Detection(part of the same entitlement, but explicitly required for vulnerability detection)

Thus the verified answer aligns perfectly with LAN Edge operational requirements and Fortinet documentation.

Answer : A, E

A FortiGate interface can operate with different types of captive portal modes.

The available portal types that require user interaction or login include:

A. Terms Acknowledgment Without Authentication

Forces users to accept terms before accessing the network

No credentials required

Still considered a captive portalCommon in guest Wi-Fi.

E. Authentication

Requires username/password

Supports local users, RADIUS, LDAP, OAuth, etc.

Why the other options are incorrect

B. Email Notification Only

Not a valid captive portal mode on FortiGate.

C. Disclaimer + Authentication

This is not a selectable mode; disclaimers are part of the captive portal customization but not a standalone option.

D. Guest Pass Access

Guest pass authentication exists onFortiAuthenticator, not as a direct portal type on FortiGate.

Answer : C

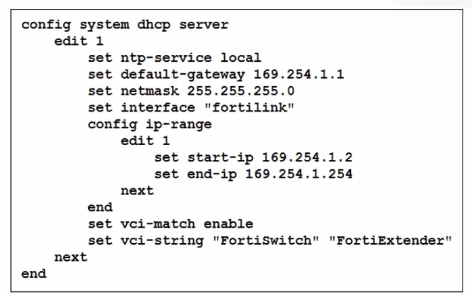

The DHCP configuration shows:

set vci-match enable

set vci-string 'FortiSwitch' 'FortiExtender'

What this means

VCI = Vendor Class Identifier (DHCP option 60)

When vci-match is enabled, the DHCP server will only respond to DHCP requests from clients whose VCI string matches the configured vendor identifiers.

FortiSwitch and FortiExtender both send DHCP option 60 with:

'FortiSwitch'

'FortiExtender'

This is used in FortiLink deployments so only these devices receive IP addresses on the FortiLink network.

Therefore:

C . To connect, devices must match the VCI string; otherwise, they will not receive an IP address.

Correct.

This perfectly matches FortiGate FortiLink DHCP behavior.

Summary of incorrect options

A --- Ignore FortiSwitch/FortiExtender

Opposite behavior.

B --- Restrict based on hostname

VCI does NOT check hostname.

D --- Reserve IPs

No reservation occurs; it's filtering, not reserving.

Answer : A, D, E

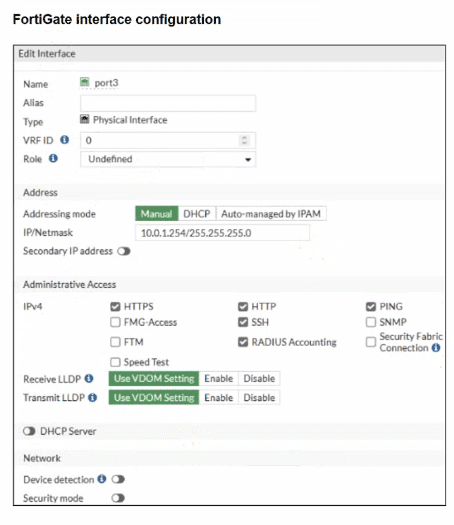

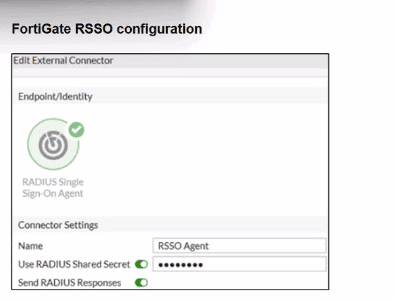

The problem states:

FortiGate receivesRADIUS accounting messagesonport3.

User-Nameattribute contains the username.

Classattribute contains the group membership.

Goal: authenticate users through RSSO and map them to the correct user groups.

To achieve this, three critical components must be configured:

A. RADIUS Attribute Value in the RSSO group must match the Class attribute

This is mandatory because:

RSSO user groups on FortiGate match users based onthe value inside the RADIUS attribute(usually Class).

For group assignment to work, FortiGate must compare:

RSSO User Group RADIUS Class Attribute Value

This isexactly how FortiGate maps RSSO users to groups.

D. RSSO agent's sso-attribute must be set to Class

Thesso-attributedefineswhich RADIUS attribute contains the group information.

Because group membership is carried in:

Class attribute

You must configure:

config user radius

set sso-attribute Class

end

This tells FortiGate:

'Use the Class attribute to derive user group membership.'

E. rsso-endpoint-attribute must be set to User-Name

This identifieswhich RADIUS attributecarries the actualusername.

In this scenario:

RADIUS accounting messages contain the username inUser-Name.

So the correct setting is:

config user radius

set rsso-endpoint-attribute User-Name

end

This ensures the RSSO user object uses the correct username.

Incorrect Options Explained

B . Assign RSSO user groups to all firewall policies

Not required.

You only assign them to policies where RSSO authentication is used.

C . Device detection and Security Fabric Connection should be enabled on port3

Totally irrelevant to RSSO.

RSSO only needs RADIUS accounting, not device detection or Fabric services.

Answer : D

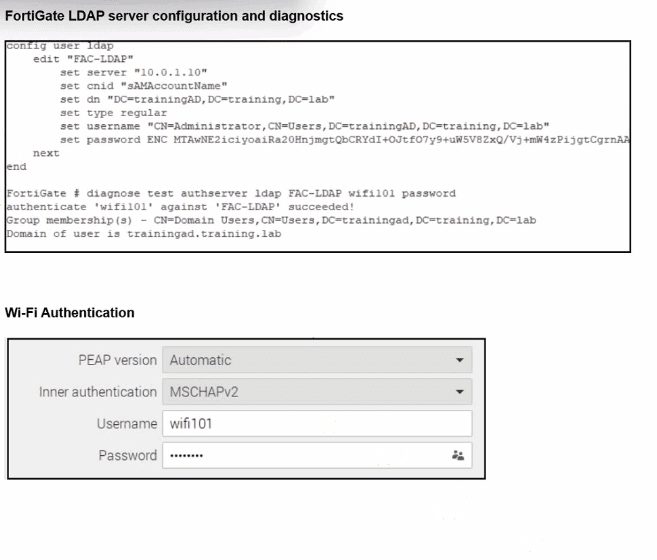

From the exhibit, LDAP on FortiGate is correctly configured and tested:

diagnose test authserver ldap FAC-LDAP wifi101 password

authenticate 'wifi101' against 'FAC-LDAP' succeeded!

Group membership(s) - CN=Domain Users,...

So:

LDAP connectivity works

Bind DN, DN, CNID, and credentials are correct(so optionCis eliminated).

Firewall policies do not affect the802.1X / Wi-Fi authentication stepitself, soAis not the root cause.

Nothing in the scenario indicates that AD is enforcing LDAPS-only; the LDAP test already succeeds using the configured parameters, soBis also excluded.

The Wi-Fi supplicant is configured forPEAP with inner authentication = MSCHAPv2.

MSCHAPv2 is achallenge--response mechanism designed for RADIUS, not for LDAP simple bind. FortiGate's LDAP implementation uses asimple bind (username/password) over LDAP or LDAPS, and it doesnotimplement MSCHAPv2 against LDAP backends.

In Fortinet's design, if you needPEAP-MSCHAPv2 with Active Directory, you must use:

ARADIUS server(such as Windows NPS or FortiAuthenticator), and

Have FortiGate use RADIUS,notLDAP, as the authentication backend for 802.1X / Wi-Fi users.

Because FortiGate cannot process MSCHAPv2 exchanges directly against an LDAP server, authentication fails when the inner method is MSCHAPv2, even though LDAP works when tested with a simple bind from the CLI.
