Question 1

What is one reason for a network administrator to visit the Dashboard > Usage window on an Aruba Mobility Master (MM)?

Ato check license usage and determine the need for additional licenses

Bto analyze short terms trends in network usage by client, AP, and application

Cto view system usage statistics for the MM and troubleshoot potential issues

Dto generate reports about traffic patterns and network usage over the past several months

Answer : B

Question 2

An Aruba Remote AP (RAP) operates in split-tunnel mode. How does the AP forward traffic?

AIt sends all user traffic in a GRE tunnel to a central Mobility Controller (MC), and it sends control traffic in an IPsec tunnel to the controller.

BIt sends traffic designed to the corporate network in an IPsec tunnel to a central Mobility Controller (MC), and it bridges other traffic locally.

CIt sends user and control traffic in two separate IPsec tunnels to the Mobility Controller (MC).

DIt sends all employee and control traffic in a GRE tunnel to a central Mobility Controller (MC), and it bridges all guest traffic locally.

Answer : B

Question 3

Refer to the exhibit.

A network administrator needs to use Aruba AirWave to view statistics for an AP's 802.11ac radio. How can the administrator update the information on-demand rather than wait the typical interval?

AClick Poll Controller Now

BClick the 802.11ac link

CLog out of the interface and log back in

DRefresh the browser

Answer : A

Question 4

A company has an Aruba solution that supports an employee WLAN. How can network administrators control in which subnets users receive IP addresses?

ASet the VLANs associated with desired subnets in the WLAN settings.

BConfigure firewall policies that permit the desired subnet, and add them to the initial role for the WLAN.

CIn the WLAN settings, configure User role rules with the desired subnet addresses as match criteria.

DAssign switch ports connected to APs to VLANs associated with the desired subnets.

Answer : A

Question 5

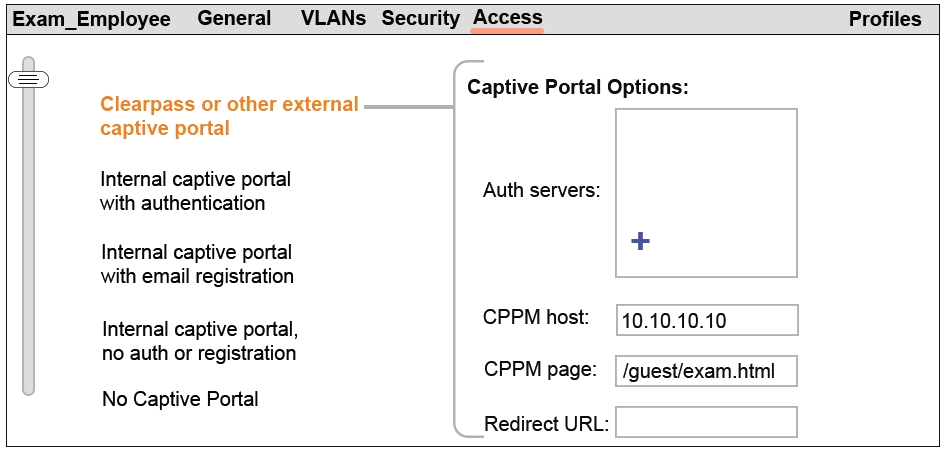

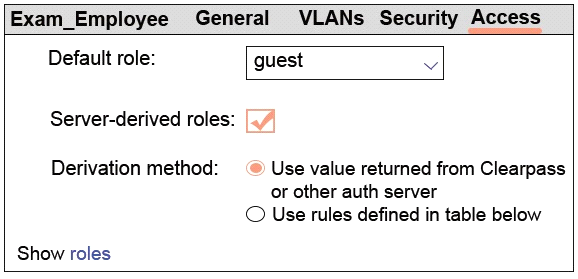

Refer to the exhibit.

A network administrator creates a guest WLAN on an Aruba Mobility Master (MM). The exhibit shows some of the settings for the WLAN.

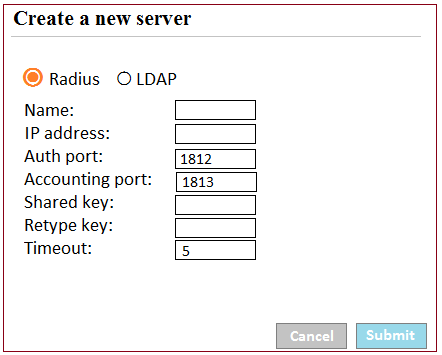

How should the network administrator handle the Auth server settings?

AAdd an authentication server with the LDAP type and the IP address of the company AD server.

BAdd an authentication server with the LDAP type and IP address 10.10.10.10.

CAdd an authentication server with the RADIUS type and IP address 10.10.10.10.

DAdd an authentication server with the RADIUS type and the IP address of the company AD server.

Answer : C

Question 6

Which feature is unique to 802.11ac Wave 2 access points?

Aband steering

Bmultiple spatial streams

C40MHz channel bonding

Dmulti-user MIMO (MU-MIMO)

Answer : D

Question 7

A company has a Mobility Master (MM)-based solution. There is a hardware issue with the MM appliance, and, as result, all connectivity is lost between the appliance and the network. The network manager is concerned about how this will impact licensing.

How will the Mobility Controller (MC) be affected?

AThe MC maintains its current licenses for 30 days.

BThe MC maintains only licenses that have been locally installed on it.

CThe MC contacts Aruba Activate and uses the licensing limits defined there.

DThe MC loses all licenses and cannot support APs or clients.

Answer : A

https://www.arubanetworks.com/techdocs/ArubaOS_81_Web_Help/Content/LicenseGuide/Multi__Network.htm
