HP HPE6-A71 Exam Questions Instant Access

Question 1

An administrator configures AirGroup policies to define which Apple services are visible and available to wireless users in a campus WLAN. However, the policies are not being enforced.

Where must the administrator enable the AirGroup functionality on the Mobility Master (MM) so that the policies will be in effect?

AAt the Mobility Master hierarchy

BAt the controller level in the Managed Network hierarchy

CAt the Access Points level in the Managed Network hierarchy

DAt the global Managed Network hierarchy

Answer : D

Question 2

A VIA client tries to initially connect to corporate office controller through an intermediate firewall. However, the VPN connection fails. The administrator examines the firewall rules and determines that rules for UDP 4500 and UDP 500 are configured.

Which additional protocol must be allowed in the firewall rules to resolve this connection failure?

ATCP 389

BUDP 4500

CUDP 8200

DTCP 993

Answer : B

Question 3

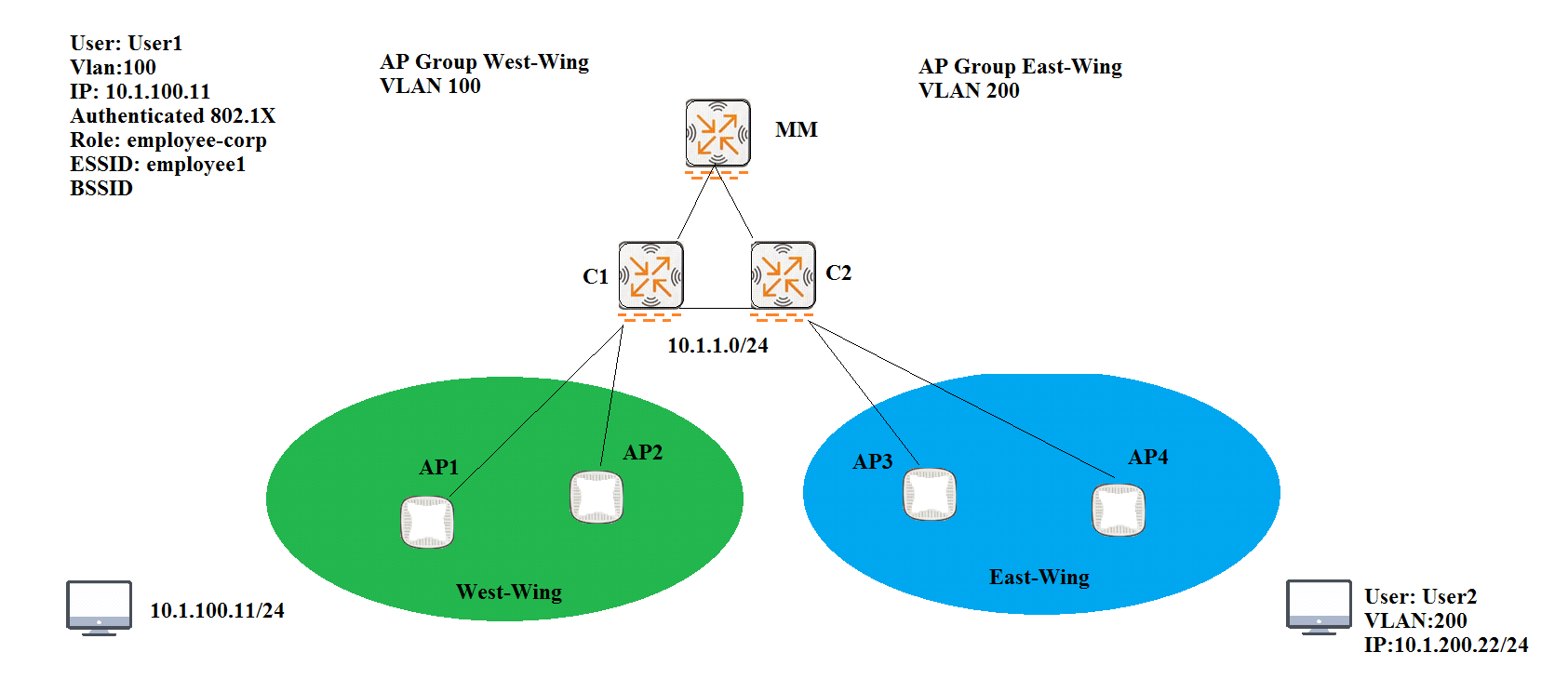

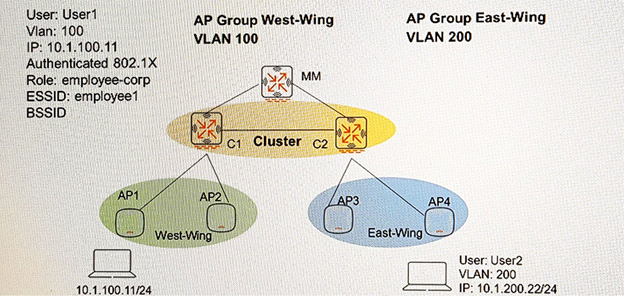

Refer to the exhibit.

Controllers are configured in a cluster as shown in the exhibit. These are the network details.

-A Mobility Master (MM) managers the cluster.

-The cluster contains two controllers: C1 and C2.

-AP1 and AP2 use C1 as their Active AP Anchor Controller (A-AAC), with C2 as their Standby AAC (S-AAC).

-AP3 and AP4 use C2 as their A-AAC with, C1 as their S-AAC.

User1 establishes a wireless connection via AP1, where the Active User Controller (U-UAC) assigned is C1, with C2 as the standby. What happens when User1 roams the wireless network and eventually their session is handled by AP3?

AThe AP3's A-AAC switches to C1, and the user's A-UAC remains on C1.

BThe AP3's A-AAC switches to C2, and the user's A-UAC remains on C2.

CThe AP3's A-AAC switches to C1, and the user's A-UAC remains on C2.

DThe AP3's A-AAC switches to C2, and the user's A-UAC remains on C1.

Answer : D

Question 4

What is true about Aruba controllers under normal operations in a Mobility Master (MM)-Mobility Controller (MC) architecture?

AThe Mobility Master can push a full configuration to a Mobility Controller.

BARM must be used to optimize wireless performance.

CThe APs can terminate on both Mobility Masters and Mobility Controllers.

DAny controller can perform local configurations.

Answer : A

Question 5

Which protocol is used between Aruba Mobility Controllers (MC) and ArubaOS-Switches to negotiate tunneled node?

AGRE

BIPSec

CSNMP

DPAPI

Answer : D

Question 6

An administrator configures a port on a RAP through the association of an AAA profile with 802.1X authentication to a RAP Ethernet port. This port connects to a switch with user desktops attached. The administrator notices that when users connect wirelessly to the RAP, a user role correctly restricts their traffic. But, when users connect with their wired desktops, they have full access to corporate resources.

What must the administrator do to restrict desktop usage based on the users' role assignment?

AApply a server-derived role privacy to the RAP port.

BIdentify the RAP port as untrusted.

CImplement ACLs on the RAP port.

DImplement per-user tunnel node on the RAP.

Answer : B

Question 7

An administrator at Campus A manages Aruba Mobility Controllers (MCs). The administrator defines a server group that includes a local ClearPass server and a remote Microsoft RADIUS server. The ClearPass server has the credentials for users at Campus A and the Microsoft RADIUS server has the credentials for users at Campus B. Users at Campus A successfully authenticate and connect to the Campus A wireless network. However, when users from Campus B visit Campus A they fail authentication.

What can the administrator do to solve this problem?

AEnable FastConnect on the Campus A Mobility Controllers.

BEnable machine authentication on the Mobility Controllers.

CEnable EAP-TTLS with EAP Termination on the Mobility Controllers.

DEnable EAP termination on the ClearPass server.

Answer : A

HP Aruba Certified Mobility Professional HPE6-A71 Exam Questions
