Huawei H12-211 Exam Practice Test Instant Access

Question 1

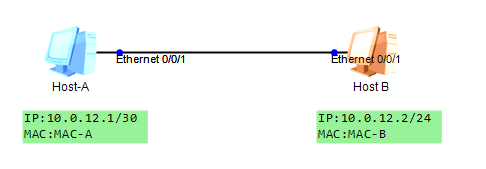

As shown in Figure, Host A and Host B cannot communicate with each other?

ATRUE

BFALSE

Answer : B

Question 2

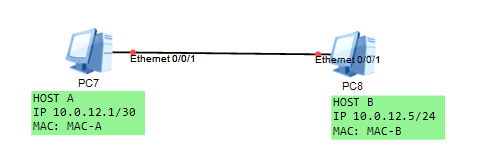

As Shown in the figure, host A and host B cannot communicate with each other?

ATRUE

BFALSE

Answer : A

Question 3

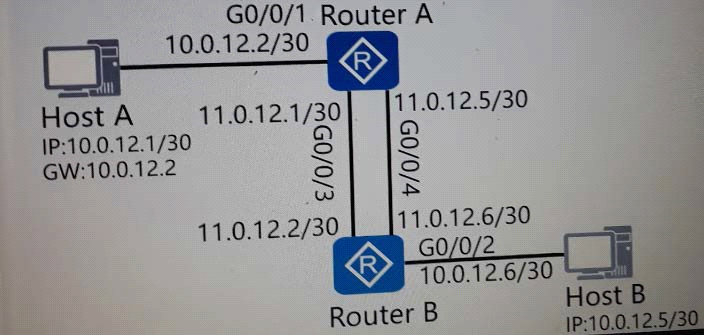

On the network shown in the figure, when planning traffic, the network administrator requires that the data packet sent from host A to host B pass through G0/0/3 on the router, and the packets sent from host B to host A pass through G0/0/4 on the router, which of the following command can be used to meed this requirement?

ARouter A : ip route-static 10.0.12.5 255.255.255.252 11.0.12.2
Router B : ip route-static 10.0.12.1 255.255.255.252 11.0.12.5

BRouter A : ip route-static 10.0.12.5 255.255.255.252 11.0.12.6
Router B : ip route-static 10.0.12.1 255.255.255.252 11.0.12.1

CRouter A : ip route-static 0.0.0.0 0.0.0.0 11.0.12.2
Router B : ip route-static 0.0.0.0 0.0.0.0 11.0.12.5

DRouter A : ip route-static 0.0.0.0 0.0.0.0 11.0.12.6
Router B : ip route-static 0.0.0.0 0.0.0.0 11.0.12.1

Answer : A, C

Question 4

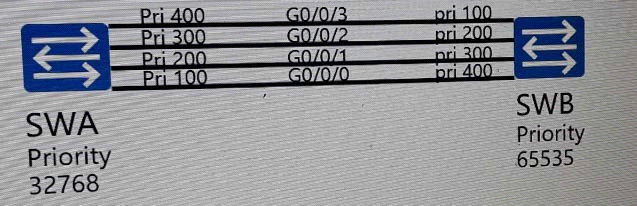

The LACP Priority is shown in the figure. Switch A and Switch B adopt link aggregation in LACP mode, All interfaces are added to link aggregation group (LAG), and the maximum number of active port is set to 3.Which port of switch A is not an active port?

AG0/0/0

BG0/0/1

CG0/0/2

DG0/0/3

Answer : D

Question 5

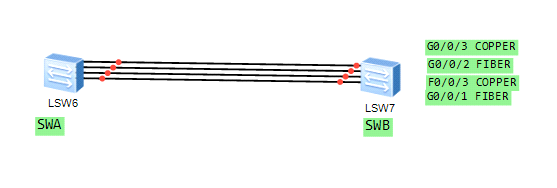

On the Network shown in the figure, two switches are connected through four links. COPPER indicates the electrical interface and Fiber indicates the optical interfaace. Which of the following interface can form an Eth-trunk?

AG0/0/3 and G0/0/2

BG0/0/3 and FE0/0/3

CG0/0/2 and FE0/0/3

DG0/0/2 and GE0/0/1

Answer : D

Question 6

Which of the following statement about gratuitous ARP packet are true?

AA system can determine whether conflicting IP addresses are used by sending a gratuitous ARP packet

BA gratuitous ARP packet uses the same format as an ARP request packet

CA gratuitous ARP packet can help to update an IP address

DA gratuitous ARP packet uses the same format as an ARP reply packet

Answer : A, B

Question 7

Which of the following routing protocols are dynamic routing protocols ?

AStatic Routing

BDirect Routing

COSPF

DBGP

Answer : C, D

Huawei H12-211 HCIA-Routing & Switching V2.5 Exam Practice Test
