Question 1

Which statement is true when using MVRP on MX Series devices?

AMVRP works with MSTP and RSTP, but not VSTP

BMVRP works with RSTP and VSTP, but not MSTP

CMVRP works with MSTP and VSTP, but not RSTP

DMVRP does not work with MSTP, RSTP, and VSTP

Answer : A

Question 2

What is the correct description of an Area Border Router (ABR)?

AAn ABR is an OSPF router with links in two areas, connecting OSPF areas to the backbone

BAn ABR is an OSPF router that injects routing information from outside the OSPF AS

CAn ABR is an OSPF router with at least one link in a Layer 2 area

DAn ABR is an OSPF router with all of its links within an area

Answer : A

Question 3

Click the Exhibit button.

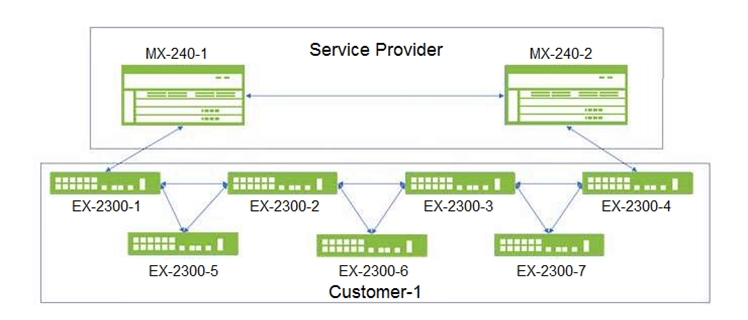

Customer-1 wants the Service Provider to allow STP to operate normally on all ports but only allow the MX Series devices to manage the Layer 2 topology.

Referring to the exhibit, which feature needs to be implemented on all devices to accomplish this task?

Aroot protection

BMAC movement protection

CBPDU protection

Dloop protection

Answer : D

Question 4

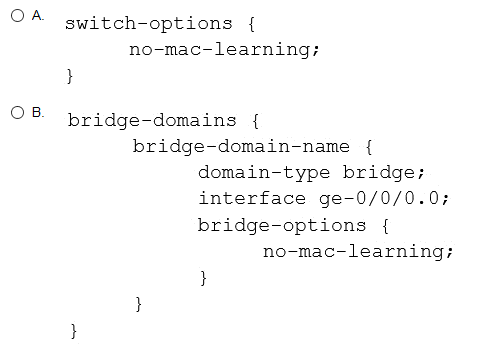

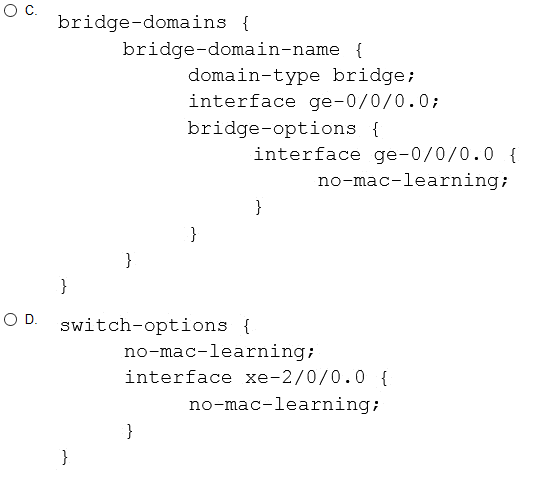

You want to disable MAC learning only for interface ge-0/0/0.0 on an MX Series device.

Which syntax will accomplish this task?

AOption A

BOption B

COption C

DOption D

Answer : C

Question 5

Click the Exhibit button.

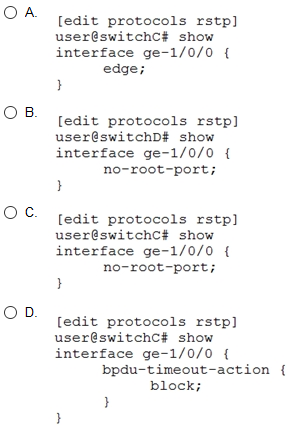

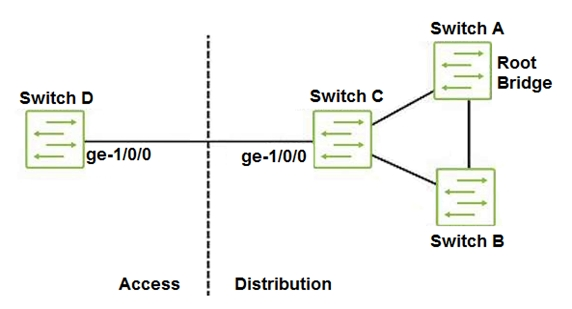

In the network shown in the exhibit, all switches are configured with the default STP root bridge priority, and Switch A has been selected as root. You recently added the older Switch D into the network as an access switch, and notice it has taken over as root.

Which configuration would solve this problem?

AOption A

BOption B

COption C

DOption D

Answer : C

Question 6

You are asked to change the default TTL handling behavior on your Junos device to ensure that the RSVP- signaled LSPs in your MPLS network cannot be mapped.

Which configuration should be performed to accomplish this task?

AConfigure the no-decrement-ttl parameter for each LSP on the ingress device

BConfigure the no-propagate-ttl parameter for each LSP on the egress device

CConfigure the no-propagate-ttl parameter for each LSP on the ingress device

DConfigure the no-decrement-ttl parameter for each LSP on the egress device

Answer : B

Question 7

Click the Exhibit button.

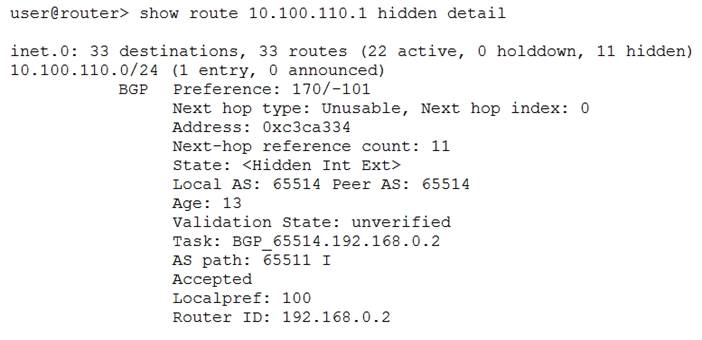

Referring to the exhibit, why is the route hidden?

AThe wrong BGP address family is enabled for the BGP session

BThe route has yet to be verified

CThe protocol next hop is not reachable

DThe MPLS LSP to the 192.168.0.2 peer is down

Answer : C
