Microsoft 70-333 Exam Practice Test Instant Access

Question 1

You have a Skype for Business Server 2015 environment. All users are enabled for Enterprise Voice. You have a Microsoft Exchange Server 2013 organization that contains one server named EX01.

You plan to implement Unified Messaging (UM). From Skype for Business Management Shell, you run the following commands:

New-UMDialPlan-Name UMDialPlan-UriType ''SipName'' --VoipSecurity Secured --NumberOfDigitsInExtension 4 ExchUCUtil.ps1

From Event Viewer, you discover the following error message when Skype for Business Server 2015 attempts to transfer a call to UM: ''Attempts to route servers in an Exchange UM Dialplan failed. No server in the dialplan UMDialPlan accepted the call with id [03b5ba2bf7ec4663bc43e8e49c246634].

Cause: Dialplan is not configured properly.''

You need to ensure that the Enterprise Voice users can receive voice mail.

Which two actions should you perform? Each correct answer presents part of the solution.

AFrom the Exchange Management Shell, run the following command:New-UmAutoAttendant --name LyncAa --UmDialPlan LyncUMDialPlan --Status Enabled

BFrom the Exchange Management Shell, run the following command:Set-UmCallRouterSettings EX01 --UmStartupMode Tls --DialPlans ''UMDialPlan''

CChange the value of the VoipSecurity of the UMDialPlan from Secured to SipSecured.

DFrom the Exchange Management Shell, run the following command:Set-UmService EX01 --UmStartupMode Tls --DialPlans ''UMDialPlan''

EChange the value of the UriType property of the UMDialPlan from SipName to E.164.

Answer : A, D

References: https://technet.microsoft.com/en-gb/library/jj687983.aspx

Question 2

Tailspin Toys deploys a Skype for Business Enterprise Voice environment that has two paired pools. The pools are located in Sydney and Singapore for high availability (HA).

You must collect user opinions about the quality of audio calls. You must survey 60% of the calls for feedback.

You need to configure end users ratings for the audio calls.

What should you do?

AUse SQL Management studio to run the SQL query [QoeMetrics].[dbo].[CallQualityFeedbackTokenDef].

BDeploy Call Quality Dashboard (CQD) to see the Rate My Call reports.

CConfigure Rate My Call percentage to 60% and deploy Call Quality Dashboard (CQD) to see the reports.

DUse SQL Management studio to run the SQL query [QoeMetrics].[dbo].[CallQualityFeedbackToken].

Answer : B

References:

https://technet.microsoft.com/en-us/library/dn951407.aspx http://blogs.technet.com/b/jenstr/archive/2015/05/05/rate-my-call-in-skype-for-business-2015.aspx

Question 3

You perform a network readiness assessment for a Skype for Business deployment.

The organization's network includes a head office and 400 branch offices. All branch offices are connected to the head office with a Multiprotocol Label Switching (MPLS) link.

You have completed the traffic simulation. The Usage Modeling Data for the Beijing site is shown in the following table:

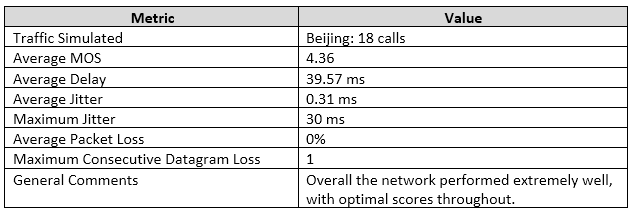

A summary of the simulation results is shown in the table below:

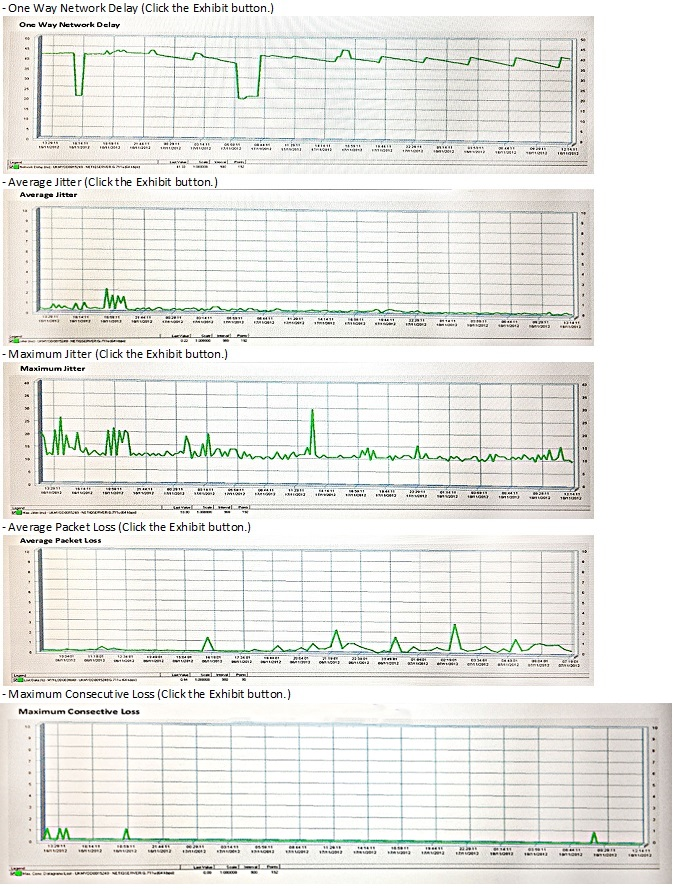

Detailed simulation results are shown in the following exhibits:

You need to provide recommendations based on the simulation results.

What should you recommend?

AIncrease WAN link bandwidth.

BMonitor Quality of Experience (QoE).

CImplement Call Admission Control (CAC) on Skype for Business for the affected sites.

DRestrict video capability or reduce quality codec usage for certain user groups.

Answer : A

Question 4

Your company has offices in New York, Tokyo, Paris, and Sydney. Employees frequently travel between the offices.

The company plans to deploy Skype for Business Server 2015 and Enterprise Voice. A pool will be deployed to each office. Location-based routing will not be used.

You need to ensure that if a user dials 911 from any of the offices, the call is routed to the local emergency services provider for that office.

What should you do?

AFrom the Skype for Business Server 2015, Topology Builder, create a central site for each office. Deploy one pool to each site. From the Skype for Business Server 2015 Control Panel, create a location policy for each location.

BFrom the Skype for Business Server 2015, Topology Builder, create one central site. Deploy all pools to the central site. From the Skype for Business Server 2015 Control Panel, create a single location policy.

CFrom the Skype for Business Server 2015, Topology Builder, create a central site for each office. Deploy one pool to each site. From the Skype for Business Server 2015 Control Panel, create a user-level location policy for each location. Assign the respective user-level location policy to the users in each office.

DFrom the Skype for Business Server 2015, Topology Builder, create one central site. Deploy all pools to the central site. From the Skype for Business Server 2015 Control Panel, modify the global location policy.

Answer : A

Question 5

You support a customer's Skype for Business Server 2015 environment. Your customer has granted User1 Conferencing Policy A, and User 2 Conferencing Policy B.

When User2 joins a video conference that is hosted by User1, User2 sees only a single video window. Other users who are joined to the same conference see up to five concurrent video streams.

You need to configure the environment to allow User2 to view multiple concurrent video streams. You need to achieve the goal with the fewest changes to the environment.

Which Skype for Business Management Shell command should you run?

ASet-CSClientPolicy --EnableFullScreenVideo $True

BGet-CSConferencingPolicy --Identity 'Conferencing Policy B' | Set-CSConferencingPolicy --EnableMultiViewJoin $True

CGet-CSConferencingPolicy --Identity 'Conferencing Policy B' | Set-CSConferencingPolicy --AllowMultiView $True

DSet-CSClientPolicy -- EnableMediaRedirection $True

Answer : B

References:

https://technet.microsoft.com/en-us/library/gg425788.aspx

Question 6

You need to recommend a solution to test users' ability to schedule, join, and conduct an audio/video (A/V) conference.

What should you do?

ARun the Test-CsAVConference Skype for Business Management Shell cmdlet and then analyze the trace call flow in Snooper.

BRun the Test-CsMcxConference Skype for Business Management Shell cmdlet and save the results. View the results by using the Skype for Business Server 2015 Logging Tool.

CRun the Test-CsUcwaConference Skype for Business Management Shell cmdlet.

DRun the Test-CsAudioConferencingProvider Skype for Business Management Shell cmdlet and save the results. View the results by using the Central Logging Service.

Answer : A

References:

https://docs.microsoft.com/en-us/powershell/module/skype/test-csavconference?view=skype-ps

Question 7

You need to deploy and enable Quality of Service (QoS) on all workstations to meet the planned changes and performance goals.

Which three actions should you perform? Each correct answer presents part of the solution.

AConfigure the Group Policy object (GPO) that configures QoS and set the value to Enforced.

BCreate Group Policy objects (GPOs) for Skype for Business audio and video and configure them to use the same port ranges and Differentiated Services Code point (DSCP) values for QoS.

CUpgrade all Windows XP and Windows Vista workstations to Windows 7 or above.

DCreate Group Policy objects (GPOs) for Skype for Business audio and video and configure them to use different port ranges and Differentiated Services Code Point (DSCP) value for QoS.

EApply Service Pack 3 to all Windows XP workstations and Service Pack 2 to all Windows Vista workstations.

Answer : A, C, D

Microsoft Deploying Enterprise Voice with Skype for Business 70-333 Exam Practice Test
