Microsoft 70-745 Exam Practice Test Instant Access

Question 1

You administer Microsoft system center Virtual machine manager (SCVMM). You create a virtual network adapter that connects a virtual machine (VM) named VM1 to a virtual switch called SW1.

You need to configure the maximum and minimum bandwidths for the virtual network adapter.

Which object should you create in SCVMM?

AVirtual port profile

BUplink port profile

CPort classification

DLogical switch

Answer : A

You apply virtual network adapter port profiles to virtual network adapters. These profiles define specific capabilities, such as bandwidth limitations, and priority.

References:

https://docs.microsoft.com/en-us/system-center/vmm/network-port-profile?view=sc-vmm-1807

Question 2

You manage Microsoft System Center Virtual Machine Manager (SCVMM). You plan to implement a software load balancer (SLB) Multiplexer (MUX).

You need to configure the Microsoft Hyper-V host servers to host the MUX.

What should you do?

AConfigure Windows Server Gateway.

BInstall the SLB Host Agent on each Hyper-V host.

CConfigure virtual machine resource metering.

DConfigure a Remote Access Service gateway.

Answer : B

References:

https://technet.microsoft.com/en-US/library/mt632286.aspx

Question 3

You plan to deploy a Nano Server that has the Microsoft Hyper-V role installed.

You must deploy the Nano Server host in a hyper-converged mode that has a Microsoft System Center Virtual

Machine Manager (SCVMM) agent installed. You need to prepare a Nano Server VHD for a physical machine.

Which three packages should you include in the VHD? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

AMicrosoft-NanoServer-DCB-Package

BMicrosoft-NanoServer-SCVMM-Package

CMicrosoft-NanoServer-SCVMM-Compute-Package

DMicrosoft-NanoServer-Storage-Package

EMicrosoft-NanoServer-NPDS-Package

Answer : B, C, D

References:

https://docs.microsoft.com/en-us/system-center/vmm/hyper-v-nano?view=sc-vmm-2016

Question 4

You administer Microsoft system center virtual machine manager (SCVMM). You develop a custom three-tier

application.

You identify the following requirement for the application deployment:

You must deploy four separate instances of the application

Configuration settings for each instance must be similar

You must be able to deploy the instances by using SCVMM

Developers must be able to access two specific application instances

You need to deploy the application instances.

What should you do?

ACreate a virtual machine VM template

BCreate a private cloud

CCreate a host group

DCreate a service template

Answer : D

Service templates group VMs together to provide an app. They contain information about a service, including the VMs that are deployed as part of the service, the applications installed on VMs, and the network settings that should be used. You can add VM templates, network settings, applications, and storage to a service template.

https://docs.microsoft.com/en-us/system-center/vmm/library-service-templates?view=sc-vmm-1807

Question 5

You use Microsoft System Center Virtual Machine Manager (SCVMM) to manage your company's virtual

infrastructure.

You need to install a host server that can run the full version of the .NET framework.

Solution: Install the host server using the Desktop Experience installation option.

Does the solution meet the goal?

AYes

BNo

Answer : A

References:

https://docs.microsoft.com/en-us/windows-server/administration/server-core/what-is-server-core

Question 6

You plan to deploy Windows Server Gateway (WSG) with Microsoft System Center Virtual Machine Manager (SCVMM).

You need to configure the send and receive buffers for the Hyper-V hosts.

Solution: You run the Windows PowerShell cmdlet Set-NetAdapterBinding.

Does the solution meet the goal?

AYes

BNo

Answer : B

The Set-NetAdapterBinding cmdlet sets the binding state of a transport or filter on a network adapter.

References:

https://docs.microsoft.com/en-us/powershell/module/netadapter/set-netadapterbinding?view=win10-ps

Question 7

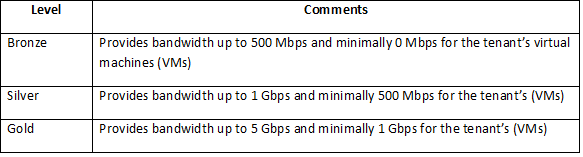

You are an administrator at Contoso ltd. You have a Microsoft system center virtual machine manager (SCVMM) host server with a 10 Gbps network interface card (NIC). The host server is configured for a multi-tenant environment. Contoso, provides three tiers of service of its tenants.

All tenants are configured to use the same virtual network and same virtual switch.

You configure the Maximum Bandwidth (Mbps) and minimum (Mbps) port profiles for each tenant according to their service tier.

Tenants report that they are not receiving the minimum service levels for their service tier.

You need to ensure that tenants receive the minimum service levels.

What should you configure?

AMinimum Bandwidth (weight)

BMinimum Bandwidth (Mbps)

CMaximum Bandwidth (Mbps)

DMaximum Bandwidth (Weight)

Answer : A

Minimum bandwidth (Weight): Specify a weighted portion of the outbound bandwidth that you want to reserve for this vNIC. This will reserve a weighted portion of the total physical NIC(s) bandwidth based on the total weights reserved by all other vNICs for a particular switch.

References:

https://docs.microsoft.com/en-us/system-center/vmm/sdn-bandwidth-qos?view=sc-vmm-1807

Microsoft 70-745 Implementing a Software-Defined Datacenter Exam Practice Test
