Nokia 4A0-103 Exam Practice Test Instant Access

Question 1

Which of the following about T-LDP on the Alcatel-Lucent 7750 SR is FALSE?

AT-LDP is used to provide an end-to-end session between two PE routers.

BT-LDP is used to signal service labels for Layer 2 services.

CT-LDP is used to establish transport tunnels for Layer 2 services.

DT-LDP is used in LDP over RSVP solution.

Answer : C

Question 2

Click on the exhibit.

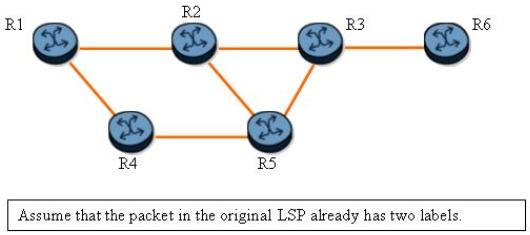

An LSP traverses the path R1-R2-R3-R6 and facility fast reroute is enabled. If the protected LSP carries one transport label and one service label, how many labels will be on the bypass tunnel if router R2 fails?

Answer : C

Question 3

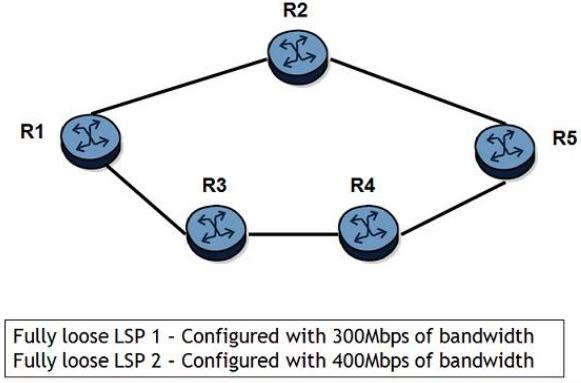

Click on the exhibit.

Initially, all links have 800Mbps of unreserved bandwidth. All links are of equal costs. Shared explicit reservation style is used. LSP 1 is signaled first with a setup and hold priority of 2. Then, LSP 2 is signaled with setup and hold priority of 5. Both LSPs go from R1 to R5. Which of the following is TRUE?

ALSP 1 will follow R1-R3-R4-R5. LSP 2 will follow R1-R2-R5.

BLSP1 will follow R1-R2-R5. LSP 2 will follow R1-R3-R4-R5.

CBoth LSP 1 and LSP 2 will follow R1-R2-R5.

DBoth LSP 1 and LSP 2 will follow R1-R3-R4-R5.

Answer : C

Question 4

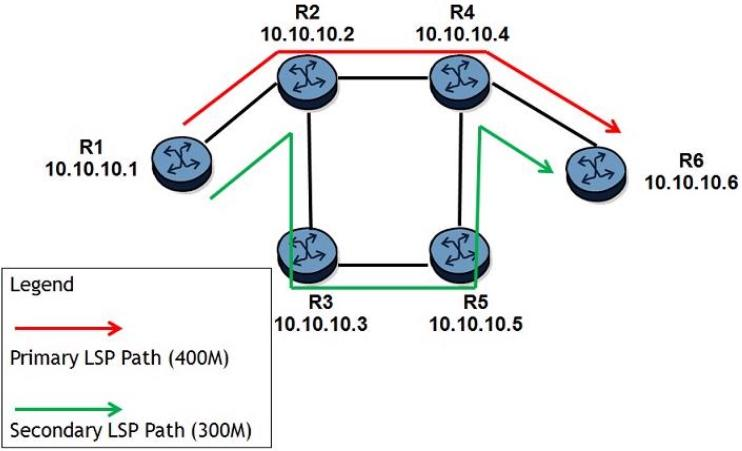

Click on the exhibit.

All links have 1Gbps unreserved bandwidth initially and Shared Explicit reservation style is used. After the LSP's primary and standby secondary paths are signaled, how much unreserved bandwidth is left on the links?

AR1-R2 will have 300Mbps left and R2-R4 will have 400Mbps left.

BR1-R2 will have 400Mbps left and R2-R4 will have 400Mbps left.

CR1-R2 will have 600Mbps left and R2-R4 will have 600Mbps left.

DR1-R2 will have 300Mbps left and R2-R4 will have 600Mbps left.

Answer : C

Question 5

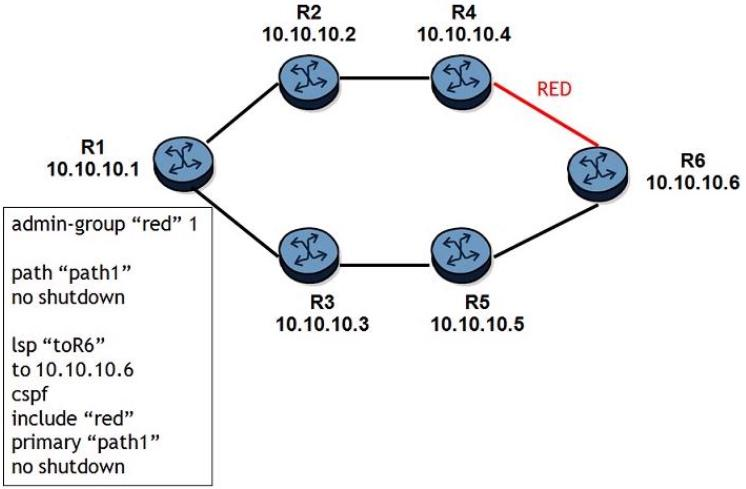

Click on the exhibit.

The link between routers R4 and R6 are configured with an admin group "red". What happens when the LSP is first signaled?

AThe LSP will go through the path R1-R2-R4-R6.

BThe LSP will go through the path R1-R3-R5-R6.

CThe LSP is down because router R1 detects that no path can meet its constraints.

DThe LSP is down because router R4 detects that no path can meet its constraints.

Answer : C

Question 6

To enable the LDP-over-RSVP feature, which of the following configurations is NOT required on an Alcatel-Lucent 7750 SR?

AEnable the Idp-over-rsvp feature on all PEs and ABRs along the LSP tunnel.

BConfigure Link-LDP sessions between each PE-ABR and ABR-ABR pair.

CConfigure RSVP-TE LSPs in each area between each PE-ABR and ABR-ABR pair.

DConfigure T-LDP sessions with the tunneling option.

Answer : B

Question 7

Click on the exhibit.

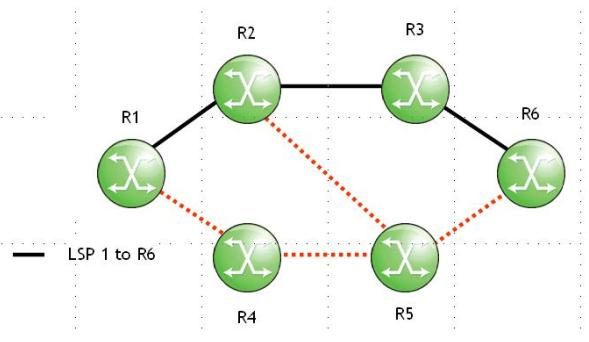

RSVP session state for LSP 1 has timed out on router R3. Which of the following actions will router R3 initiate to clear the RSVP session?

ASend a PATH Tear message toward router R6.

BSend a PATH Tear message toward router R1.

CSend a PATH Error message toward router R6.

DSend a PATH Error message toward router R1.

Answer : D

Nokia Multiprotocol Label Switching 4A0-103 Exam Practice Test
