Question 1

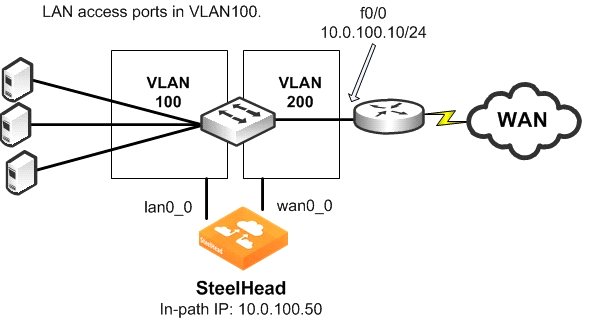

A SteelHead is deployed in a VLAN bridge. Which VLAN ID should be configured on the in-path interface to support this environment?

B100

C200

DNo configuration is necessary as LAN and WAN interfaces are on access ports

EIt will require an in-path interface for each VLAN

Answer : C

Question 2

You are using TCPdumps on the server-side SteelHead to troubleshoot an application connectivity issue. The following filter is used on the TCPdump:

(host and host ) or (host and host ) or (proto gre and ((ip[40:4] =

and

ip[44:4] = ) or (ip[40:4] = and ip[44:4] = )) or (port 7850)

What part of the filter captures the traffic which the Interceptor has applied NAT to?

A(ip[40:4] = <hex client IP> and ip[44:4] = <hex server IP>)

B(host <server IP> and host <steelhead inpath IP>)

C(proto gre and ((ip[40:4] = <hex server IP> and ip[44:4] = <hex client IP>)

D(host <client IP> and host <server IP>)

Answer : A

Question 3

You have a client and server using SMB2 signing. You have SMB optimization enabled on your SteelHeads, but SMB signing is not enabled on the server-side SteelHead. What is the effect on this on an SMB connection which the SteelHeads attempt to optimize?

AAny SMB2 connections between this client and server will be shown as optimized with protocol errors. No latency optimization or data reduction can be performed.

BSMB2 connections between this client and server, which are initiated at the client side will be fully optimized with latency reduction.

CAny SMB2 connections between this client and server will be optimized using data reduction only. No latency optimization will take place.

DAny SMB2 connections between this client and server will be optimized using latency optimization only No data reduction will take place.

Answer : C

Question 4

True or False? To be able to use Active Directory assignments, the SteelCentral Controller for SteelHead Mobile must be joined to the domain.

ATrue

BFalse

Answer : A

Question 5

You deploy a pair of SteelHead appliances in-path. At the server-side, there is a firewall inspecting traffic between the SteelHeads. The firewall must see the original client and server IPs and is configured to drop packets where the same host pairs and port pairs are reused within 30 seconds of termination. Which addressing mode would workaround this issue?

AFull Transparency

BPort Transparency

CCorrect Addressing

DFull Transparency with reset

Answer : A

Question 6

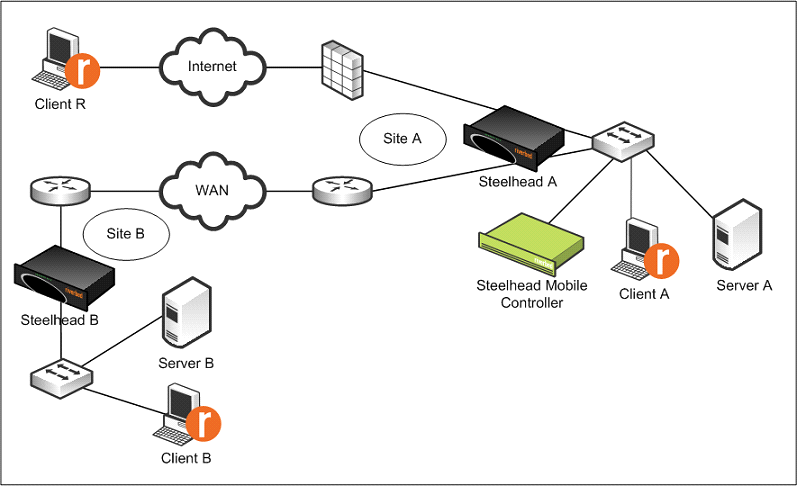

In the SteelHead Mobile client application, the Connection List shows a connection with a green arrow. What does this indicate?

AA branch warning optimized connection

BA branch mode optimized connection

CAn unlicensed connection

DA pass-through connection

EA normal optimized connection

Answer : B

Question 7

A SteelHead is deployed on an 802.1Q trunk in the diagram below. A connection is being optimized from a client on VLAN 20 using Correct Addressing.

Which VLAN ID will be on the inner channel connection?

A10

B20

CThe native VLAN

DNo VLAN ID

EOnly VLAN 10 can be optimized. All other are passed through on their original tag

Answer : B
