RUCKUS Certified Wi-Fi Associate RCWA Exam Questions

Answer : A, D, E

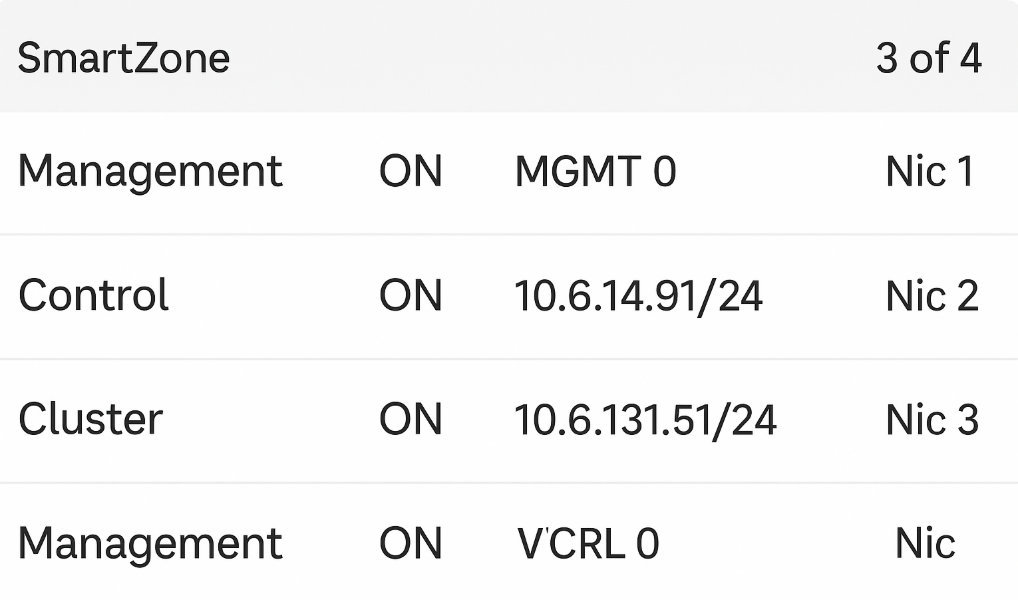

The exhibit shows a virtual SmartZone (vSZ) configuration running in a VMware environment with three separate virtual NICs (vNICs), each mapped to a different port group: Management, Control, and Cluster.

According to RUCKUS One Online Help -- SmartZone Interface Configuration and RUCKUS AI Documentation -- SmartZone High-Scale Architecture, this design is specific to vSZ-H (High-Scale) deployments, which require three distinct network interfaces for distributed control, management, and cluster synchronization.

The three NIC mappings confirm physical or virtual separation of traffic for scalability and redundancy (A and E). vSZ-E (Essentials) requires only two interfaces (Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H (D).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is a vSZ-H system with three NICs and three port groups, each serving a dedicated function.

RUCKUS One Online Help -- SmartZone vSZ-H Network Interface Roles

RUCKUS Analytics 3.5 User Guide -- Controller Connectivity and Cluster Interfaces

RUCKUS AI Documentation -- vSZ-H Deployment Topologies and Port Group Mapping

Answer : B, D, F

Designing Wi-Fi for Large Public Venues (LPV) such as stadiums, arenas, or convention centers requires a highly strategic RF approach to handle extreme client density and dynamic environmental factors.

According to RUCKUS One Online Help -- High-Density Design Best Practices and RUCKUS AI Documentation -- LPV Deployment Planning, three critical considerations are:

Expected number of devices (B): Determines AP count, bandwidth capacity, and airtime utilization. LPV environments often exceed one device per seat, requiring precise capacity planning.

Effect of human bodies on RF propagation (D): Human absorption of 2.4 GHz and partial reflection of 5 GHz signals dramatically affects coverage. RUCKUS recommends directional antennas and elevated AP placement to overcome this.

Other factors like WAN speed and charging stations are operational but not primary design variables in LPV RF engineering.

RUCKUS One Online Help -- High-Density Wi-Fi Design and Capacity Planning

RUCKUS Analytics 3.5 User Guide -- Client Density and Capacity Metrics

RUCKUS AI Documentation -- Stadium and LPV RF Deployment Guidelines

Answer : A

When spectrum analysis mode is enabled on a RUCKUS Access Point, the AP's radios are temporarily dedicated to spectrum scanning and interference analysis, meaning they cannot serve wireless clients during that period. Therefore, new clients will not be able to join, and existing clients are typically disconnected.

According to the RUCKUS One Online Help -- Spectrum Analysis Tool and RUCKUS AI Documentation -- RF Monitoring and Optimization, spectrum analysis mode captures and reports RF energy utilization, identifying interference sources such as non-Wi-Fi devices, microwave ovens, or Bluetooth. The AP alternates its radio into ''sniffer'' mode to analyze RF characteristics, during which client association and data traffic handling are suspended.

The output is visualized through graphs and real-time utilization charts, not histograms. Furthermore, an AP can only scan one band (either 2.4 GHz or 5 GHz) at a time --- not both simultaneously.

Thus, the correct answer is A, since enabling spectrum analysis prevents new client associations while the AP is in scanning mode.

RUCKUS One Online Help -- Spectrum Analysis Overview

RUCKUS Analytics 3.5 User Guide -- RF Health and Interference Detection

RUCKUS AI Documentation -- Spectrum Monitoring and RF Analysis Tools

Answer : A, D

A hidden node problem occurs when two or more client devices are within range of the AP but cannot hear each other, causing frame collisions that lead to degraded performance.

According to RUCKUS One Online Help -- RF Interference and Hidden Node Detection and RUCKUS AI Documentation -- Airtime Efficiency Analysis, the symptoms include:

(A) Retransmissions: Frequent retries due to undetected collisions.

(D) Reduced throughput: Effective throughput decreases as airtime is wasted on retransmissions and ACK delays.

The issue is common in high-density or obstructed environments. Enabling RTS/CTS or BeamFlex+ can mitigate it by improving communication coordination.

''Channel changes'' occur in interference mitigation, not hidden-node detection; ''Excessive roaming'' and ''Increased Tx power'' are unrelated effects.

RUCKUS One Online Help -- Hidden Node Problem and Mitigation Strategies

RUCKUS Analytics 3.5 User Guide -- Retransmission and Airtime Metrics

RUCKUS AI Documentation -- Hidden Node Impact on Throughput and Retry Analysis

Answer : C

For Voice-over-Wi-Fi (VoWiFi) deployments, RUCKUS recommends maintaining airtime utilization under 50% and ensuring a minimum RSSI of --65 dBm at the edge of coverage areas to guarantee clear call quality and low latency.

According to RUCKUS One Online Help -- WLAN Design for Real-Time Applications and RUCKUS AI Documentation -- VoIP Quality Optimization, these thresholds ensure a Signal-to-Noise Ratio (SNR) above 25 dB, keeping jitter under 30 ms and packet loss below 1%.

RUCKUS SmartCast QoS automatically prioritizes voice packets (802.11e WMM Voice AC) to further protect call performance, but maintaining low channel congestion remains critical.

RUCKUS Analytics 3.5 User Guide -- Airtime and Voice Traffic Metrics emphasizes monitoring airtime utilization through dashboards to verify compliance with design thresholds.

RUCKUS One Online Help -- Designing for Voice over Wi-Fi (VoWiFi) Guidelines

RUCKUS Analytics 3.5 User Guide -- Airtime Utilization and Voice Quality Metrics

RUCKUS AI Documentation -- Real-Time Application Optimization and QoS Design

Answer : B, D

Auto Cell Sizing (ACS) is a RUCKUS feature designed to automatically optimize the RF environment by dynamically adjusting transmit power levels of access points to ensure balanced coverage and minimal interference between APs.

According to the RUCKUS One Online Help -- RF Management and Auto Cell Sizing and RUCKUS AI documentation -- RF Optimization Tools, ACS:

Automatically adjusts radio transmit power (B) based on environmental conditions and neighboring AP coverage.

Requires background scanning to be enabled (D) so the system can measure the surrounding RF conditions and interference patterns.

ACS does not automatically adjust channel selection, as that functionality is handled by ChannelFly, a separate RUCKUS technology. It is not enabled by default, and manual power tuning is typically disabled when ACS is active, since the controller manages power dynamically to maintain optimal cell overlap.

Thus, the correct answers are B (it can automatically adjust radio power) and D (it requires background scanning to be enabled).

RUCKUS One Online Help -- RF Optimization: Auto Cell Sizing and ChannelFly

RUCKUS Analytics 3.5 User Guide -- RF Health and Adaptive Power Management

RUCKUS AI Documentation -- Adaptive RF Optimization and Power Adjustment Mechanisms

Answer : D

In SmartZone, WLAN Groups define which SSIDs (WLANs) are broadcast by specific APs or AP Groups. However, for an AP Group to actually broadcast the WLANs from a WLAN Group, that WLAN Group must be explicitly assigned to the AP Group's radio interfaces (2.4 GHz, 5 GHz, or 6 GHz).

According to RUCKUS One Online Help -- WLAN Group Configuration and SmartZone Administrator Guide, when an AP Group does not have a WLAN Group bound to its radios, the SSIDs in that group will not be broadcast---even if both exist within the same Zone.

Creating the WLAN Group at the Domain level or Zone level is valid, but broadcasting depends on association at the AP Group radio level.

RUCKUS One Online Help -- WLAN and AP Group Relationship

RUCKUS Analytics 3.5 User Guide -- WLAN Deployment and AP Broadcast Validation

RUCKUS AI Documentation -- WLAN Group-to-AP Radio Mapping Logic
