VMware 1V0-41.20 Exam Practice Test Instant Access

Question 1

A customer needs to secure two virtual machines that are attached to the same segment.

How can the customer achieve network security using NSX Data Center?

AConfigure a distributed firewall rule

BMove one of the virtual machines to a separate segment

CConfigure a physical firewall rule

DInstall a personal firewall on each virtual machine

Answer : A

Question 2

A customer needs a solution to provide Layer 2 connectivity between vSphere and KVM hypervisors.

Which VMware solution should the customer use?

ANSX Service Mesh

BNSX Cloud

CNSX-T Data Center

DNSX Intelligence

Answer : C

Question 3

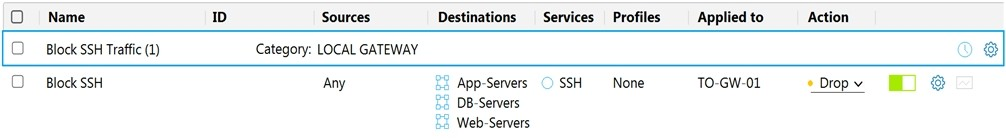

Given this exhibit:

Which statement is true about the firewall rule?

AIt is a distributed firewall applied to App-Servers, DB-Servers and Web-Servers that rejects traffic on port 22.

BIt is a gateway firewall applied to a Tier-1 gateway that rejects traffic on port 22.

CIt is a distributed firewall applied to App-Servers, DB-Servers and Web-Servers that drops traffic on port 22.

DIt is a gateway firewall applied to a Tier-0 gateway that drops traffic on port 22.

Answer : D

Question 4

Which two statements are true about N-VDS/VDS? (Choose two.)

AKVM hosts support both N-VDS and VDS.

BIt is a module deployed in all transport nodes that provides L2 functionality.

CIt is a module deployed in all transport nodes that provides L3 functionality.

DESXi hosts support both N-VDS and VDS.

EBare-metal servers support both N-VDS and VDS.

Answer : B, D

Question 5

A customer needs to create a multi-tier network infrastructure.

What does the customer need to do to create this infrastructure?

AConnect segments to a Tier-1 gateway, and connect the Tier-1 gateway to the Tier-0 gateway.

BConnect segments to the Tier-1 gateway only.

CConnect segments to a Tier-0 gateway, and connect the Tier-0 gateway to the Tier-1 gateway.

DConnect segments to the Tier-0 gateway only.

Answer : A

Question 6

What is the benefit of connecting segments to Tier-1 Gateways?

AEnhanced cloud consumption model

BEnhanced micro-segmentation model

CEnhanced East/West communication

DEnhanced North/South communication

Answer : C

Question 7

What are two characteristics of a Software Defined Networking (SDN) solution? (Choose two.)

AIt allows workloads to be placed and migrated anywhere in the network.

BIt is dependent on the underlying physical routers and switches.

CIt is decoupled from the physical networking infrastructure.

DIt contributes to layer 2 network sprawl.

EIt restricts the placements of virtual machines and containers.

Answer : A, C

VMware Associate VMware Network Virtualization 1V0-41.20 Exam Practice Test
