VMware 3V0-752 VCAP7-DTM Design Exam Practice Test Instant Access

Question 1

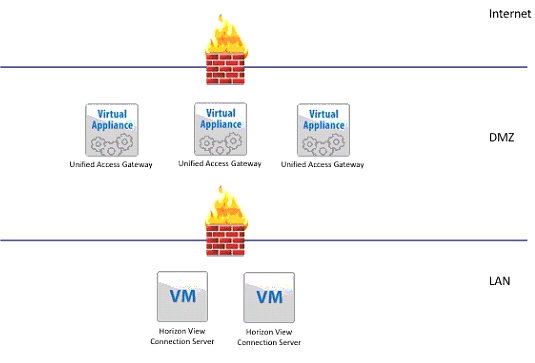

A customer would like to implement Horizon 7 using Unified Access Gateway for external access.

Referring to the exhibit, which two architectural considerations are required? (Choose two.)

ASSL Offloading or Bridging

BOne-to-one mapping of Unified Access Gateways and Horizon View Connection Servers

CSession Affinity Options

DDNS Lookup in the DMZ

EUnified Access Gateway Pairing to Horizon View Connection Servers

Answer : A, E

Question 2

An architect is designing a solution for a customer who plans to grow its VDI environment. The design must allow for scaling of the environment in incremental steps with predictable results.

Which can the architect recommend for capacity management?

ADesign using a pod and block architecture and verify the capacity of the configured block. Add as blocks needed.

BDesign the environment around traditional all-flash SAN to ensure that there are no scaling issues.

CDesign the environment using vSAN ready nodes. Add more nodes as needed.

DDesign using servers that can accept 768GB of RAM so that there are no scaling issues.

Answer : A

Question 3

During a planning meeting for an upcoming deployment of a Horizon View 7.1 environments, these requirements were identified by an architect:

* Separate pools for internal and external connectivity.

* Applications are not to be installed in the desktop VMs.

* Application assignments are to be user-based.

* No VPN is to be used.

Which three should the architect recommend to meet the requirements? (Choose three.)

AUse VMware Horizon View's tagging feature to identify external / internal pools.

BUse VMware App Volumes.

CUse ThinApp to stream the applications.

DUse VMware User Environment Manager to define network subnets that will filter the lists of external / internal desktop pools based on the user's client ip address.

EUse VMware NSX and deploy micro-segmentation rules that will filter the lists of external / internal desktop pools based on the user's client ip address.

FUse Horizon Security Server.

Answer : A, B, F

Question 4

Which are three default network ports that need to be allowed through a firewall for a Workspace One solution supporting Mobile Single-Sign on (SSO) for iOS and Android devices? (Choose three.)

ATCP 5262

BTCP/UDP 88

CTCP 8443

DTCP/UDP 1337

ETCP 443

FTCP 80
References:

Answer : A, B, E

Question 5

An application packaging team is preparing to deploy a new enterprise application for 1000 users.

Application requirements and limitations include:

* Windows 2012 R2 or Windows 10 64-bit OS

* Installation of a PDF printer

* Application only allows a single instance to be launched

* 1 GB RAM

The organization is only using Horizon hosted applications on Windows 2012 R2. The servers are at 30% utilization. No additional users will be added.

What changes to the Horizon environment will be required to deploy the application?

ADeploy a Windows 10 desktop pool.

BDeploy User Environment Manager.

CDeploy a new application pool using Windows 2012 R2.

DDeploy App Volumes with writeable volumes.

Answer : C

Question 6

Ten task workers in a remote branch office access Horizon VMs running Windows 7. The workers use PCoIP zero clients over a 40 Megabit per second network connection. No GPO currently alerts the default Horizon PCoIP settings.

Which two Horizon PCoIP GPO settings improve user experience and help reduce the network bandwidth needed by each Horizon zero client session? (Choose two.)

AAudio bandwidth limit

BSession bandwidth floor

CBuild-to-Lossless

DSession MTU

Answer : A, C

Question 7

A customer wants to deploy VMware Horizon View to support virtual desktops hosted in two different physical locations. It wants users to connect to the location nearest to them to start a session.

Which three steps must be completed to enable this functionality? (Choose three.)

AConfigure one View Pod spanning two sites.

BInitialize the Cloud Pod Federation.

CConfigure Global Entitlements.

DConfigure VMware User Environment Manager.

EConfigure two View Pods.

FConfigure Microsoft SQL Server Always On High Availability.

Answer : A, B, D

VMware 3V0-752 VMware Certified Advanced Professional 7 - Desktop Management Design Exam VCAP7-DTM Design Exam Practice Test
