VMware 5V0-11.21 Exam Questions Instant Access

Question 1

When deploying a VMware Cloud on AWS software-defined data center (SDDC), which three default components are located behind the T1 Management Gateway? (Choose three.)

AThree-node VMware NSX-T Controller Cluster

BVMware vCenter Server

CVMware Site Recovery

DVMware vRealize Log Insight

EVMware NSX-T Data Center Manager

FVMware HCX Cloud Manager

Answer : A, B, E

https://docs.vmware.com/en/VMware-Cloud-on-AWS/services/com.vmware.vmc-aws-networking-security/GUID-658253DB-F384-4040-94B2-DF2AC3C9D396.html

Question 2

An administrator deploys a virtual machine to its software-defined data center (SDDC) and configures it to perform backups of the other virtual machines in the SDDC. The administrator also creates an AWS Simple Storage Service (S3) bucket in the linked Amazon Virtual Private Cloud (VPC) and is attempting to use the S3 bucket as a repository for their backups. The administrator confirms that the backup software is capable of using AWS S3 storage as a backup repository, and that the AWS S3 bucket is configured to use an endpoint in the linked VPC. What else should the administrator do to ensure connectivity between SDDC virtual machines and the AWS S3 repository in the linked VPC through the Elastic Network Interface?

AConfigure Direct Connect to a Private Virtual Interface for access to AWS services.

BConfigure a route-based VPN for the SDDC to the VPC.

CConfigure Direct Connect to a Public Virtual Interface for access to AWS services.

DEnsure Service Access for S3 is enabled in Networking and Security for the SDDC.

Answer : D

Ensure that access to S3 through the elastic network interface is enabled. By default, S3 access through the elastic network interface in the connected Amazon VPC is enabled. If you disabled this access to allow S3 access through the internet gateway, you must re-enable it. Log in to the VMC Console at https://vmc.vmware.com. Click > Connected VPC Under Service Access, click Enable next to S3 Endpoint. https://docs.vmware.com/en/VMware-Cloud-on-AWS/services/com.vmware.vmc-aws-operations/GUID-B501FA3C-EAF9-4005-AC72-155C3F592281.html

Question 3

An administrator is asked to create a new network segment in VMware Cloud on AWS. This network segment should be accessible from the on-premises data center. How would the administrator create this new network and what segment type should it be?

A- Connect to the on-premises VMware vCenter Server and create the network segment through the VMware vSphere user interface.
- Select the stretched network segment type.

B- Connect to the VMware Cloud console to create the network segment.
- Select the routed network segment type.

C- Connect to the VMware Cloud console to create the network segment.
- Select the extended network segment type.

D- Connect to the VMware Cloud on AWS vCenter Server and create the network segment through the VMware vSphere user interface
- Select the routed network segment type.

Answer : C

Question 4

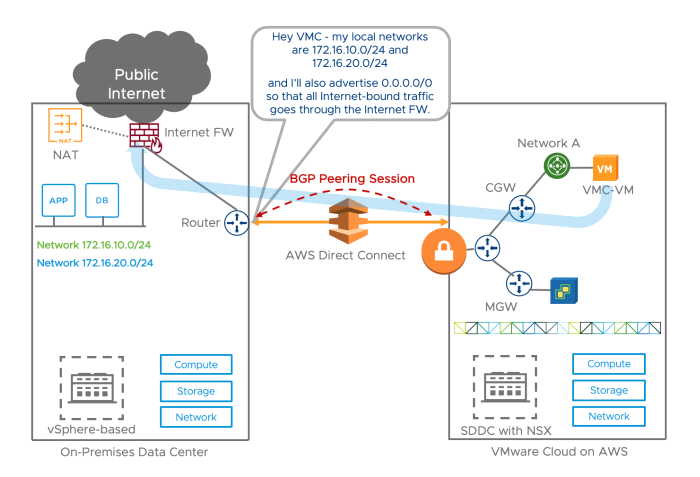

An administrator has deployed VMware Cloud on AWS and requires a single broadcast domain for a set of virtual machines that reside both in the data center and in the software-defined data center (SDDC) over a DirectConnect connection. How can the administrator accomplish this without adding additional components in the cloud?

ADuplicate the IP space in both locations and manually move the virtual machines.

BDeploy a Layer 2 Virtual Private Network (L2VPN).

CUse a third-party networking tool to extend the broadcast domain.

DDeploy VMware HCX and a Service Mesh with a Network Extension appliance.

Answer : B

https://docs.vmware.com/en/VMware-Cloud-on-AWS/services/com.vmware.vmc-aws.networking-security/GUID-8BBB5707-8FB3-4F05-AEC3-668FD8EA6B8E.html

Question 5

An administrator runs an analysis on all workloads using Live Optics and confirms there are a variety of applications, including Microsoft SQL server and Oracle databases. The Microsoft SQL workloads are averaging 4,000 IOPS per virtual machine, approximately 50% writes. The Oracle workloads are averaging 3,000 IOPS per virtual machine, and approximately 80% writes. Which method should be used to input the data into the VMware Cloud on AWS Sizer for the most accurate results?

AUse the Advanced Sizer in 'database' mode. Create workload profiles for the analyzed virtual machines, including profiles for Microsoft SQL and Oracle. Set the values forvCPU. vRAM. utilized storage. IOPS and I/O profile manually.

BUse the Quick Sizer. Set the values forvCPU, vRAM. utilized storage. IOPS and I/O profile manually.

CUse the Advanced Sizer in 'import' mode. Import the Live Optics data and let the Advanced Sizer set the values forvCPU. vRAM. utilized storage. IOPS and I/O automatically.

DUse the Advanced Sizer in 'manual' mode. Create workload profiles for the analyzed virtual machines, including profiles for Microsoft SQL and Oracle. Use the default values for the SQL and Oracle workload profiles.

Answer : C

Question 6

Which two statements are true about the characteristics of the Default Storage Scale-Out policy? (Choose two.)

AElastic DRS automatically sets to the Default Storage Scale-Out policy, adding hosts only when storage utilization exceeds a certain threshold.

BWhen the storage threshold of the Default Storage Scale-Out policy has been resolved. Elastic DRS automatically performs a scale-in operation.

CThe Default Storage Scale-Out policy storage threshold level is set to meet SLA requirements and can not be superseded by other Elastic DRS policies.

DThe Default Storage Scale-Out policy thresholds for CPU or memory usage are set higher than the other Elastic DRS policies.

EThe Default Storage Scale-Out policy storage threshold is set 5% higher than the other Elastic DRS storage policies.

Answer : A, E

Question 7

A customer is currently running 153 virtual machines in an eight-node vSphere cluster. Each host is equipped with 256GB RAM, two AMD CPUs and four 10Gb NICs. Which migration strategy should the administrator recommend?

AHCX Replication Assisted vMotion (RAV) with Enhanced vMotion Compatibility

BHCX Cold Migration

CCross vCenter vMotion with Hybrid Linked Mode

DHCX vMotion with Enhanced vMotion Compatibility

Answer : C
