Question 1

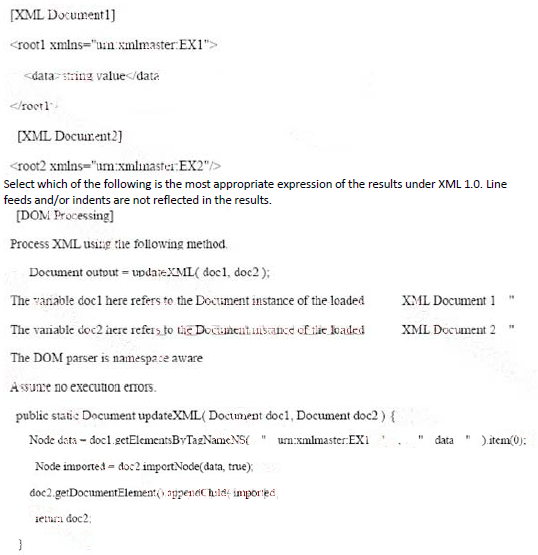

Push the Exhibit Button to load the referenced "XML Document 1" and "XML Document 2," and process XML using "DOM Processing."

A<root2 xmlns='urn:xmlmaster:EX2'>
<data xmlns= ' urn:xmlmaster:EX1 ' >string value</data>
</root2>

B<root2 xmlns='urn:xmlmaster:EX2'>
<data>string value</data>
</root2>

C<root2 xmlns='urn:xmlmaster:EX2'>
<data xmlns= ' urn:xmlmaster:EX1 ' />
</root2>

D<root2 xmlns='urn:xmlmaster:EX2'>
<data/>
</root2>

Answer : A

Question 2

Push the Exhibit Button to load the referenced "XML Document". When processing the "XML Document" according to the method shown by "DOM Processing," which of the following is the most appropriate expression of the results under XML 1.0? Line feeds and/or indents are not reflected in the results.

Although the expected processing result is choice "B", processing may not occur as expected.

[DOM Processing]

Process XML using the following method.

Document output = createXML( doc, impl );

The variable doc here references the Document instance of the loaded XML Document.

The variable impl here references the DOMImplementation instance.

The DOM parser is namespace aware.

Assume no execution errors.

}

return output;

}

A<VisitList xmlns='urn:xmlmaster:NEWLIST'>
<Visit>
<Worker xmlns='urn:xmlmaster:WORKER' Name='Jeff Workman'/>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0001'>
<DateTime>2004-07-01 09:00</DateTime>
<Job Procedure='Install freezer' Time='2'/>
<Status>COMPLETED</Status>
</Activity>
</Visit>
</VisitList>

B<VisitList xmlns='urn:xmlmaster:NEWLIST'>
<Visit>
<Date xmlns='urn:xmlmaster:LIST'>2004-07-01</Date>
<Worker xmlns='urn:xmlmaster:WORKER' Name='Jeff Workman'/>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0001'>
<DateTime>2004-07-01 09:00</DateTime>
<Job Procedure='Install freezer' Time='2'/>
<Status>COMPLETED</Status>
</Activity>
</Visit>
</VisitList>

C<VisitList xmlns='urn:xmlmaster:NEWLIST'>
<Visit>
<Worker xmlns='urn:xmlmaster:WORKER' Name='Jeff Workman'/>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0001'>
<DateTime>2004-07-01 09:00</DateTime>
<Job Procedure='Install freezer' Time='2'/>
<Status>COMPLETED</Status>
</Activity>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0002'>
<DateTime>2004-07-01 13:00</DateTime>
<Job Procedure='Install air conditioner' Time='2'/>
<Status>WAITING</Status>
</Activity>
</Visit>
</VisitList>

D<VisitList xmlns='urn:xmlmaster:NEWLIST'>
<Visit>
<Date xmlns='urn:xmlmaster:LIST'>2004-07-01</Date>
<Worker xmlns='urn:xmlmaster:WORKER' Name='Jeff Workman'/>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0001'>
<DateTime>2004-07-01 09:00</DateTime>
<Job Procedure='Install freezer' Time='2'/>
<Status>COMPLETED</Status>
</Activity>
<Activity xmlns='urn:xmlmaster:VISIT' Code='0002'>
<DateTime>2004-07-01 13:00</DateTime>
<Job Procedure='Install air conditioner' Time='2'/>
<Status>WAITING</Status>
</Activity>
<Visit>
</VisitList>

Answer : A

Question 3

Push the Exhibit Button to load the referenced "XML Document".

[XML Document]

lmnop

Assume that the "XML document" is changed to the "Results XML Document." Select which XSLT style sheet correctly performs the transformation.

Note that the XSLT processor can output transformation results as a document.

[Results XML Document]

A<xsl:stylesheet version='1.0' xmlns:xsl='http://www.w3.org/1999/XSL/Transform'>
<xsl:template match= ' / ' >
<xsl:apply-templates select= ' root/data ' />
</xsl:template>
<xsl:template match= ' data ' >
<xsl:element name='<xsl:value-of select='.'/>'/>
</xsl:template>
</xsl:stylesheet>

B<xsl:stylesheet version='1.0' xmlns:xsl='http://www.w3.org/1999/XSL/Transform'>
<xsl:template match= ' / ' >
<xsl:apply-templates select= ' root/data ' />
</xsl:template>
<xsl:template match= ' data ' >
<xsl:element name='{ . }'/>
</xsl:template>
</xsl:stylesheet>

C<xsl:stylesheet version='1.0' xmlns:xsl='http://www.w3.org/1999/XSL/Transform'>
<xsl:template match= ' / ' >
<xsl:apply-templates select= ' root/data ' />
</xsl:template>
<xsl:template match= ' data ' >
<xsl:element name='.'/>
</xsl:template>
</xsl:stylesheet>

D<xsl:stylesheet version='1.0' xmlns:xsl='http://www.w3.org/1999/XSL/Transform'>
<xsl:template match= ' / ' >
<xsl:apply-templates select= ' root/data ' />
</xsl:template>
<xsl:template match= ' data ' >
<xsl:text disable-output-escaping='no'><</xsl:text>
<xsl:value-of select='.'/>
<xsl:text disable-output-escaping='no'>/></xsl:text>
</xsl:template>
</xsl:stylesheet>

Answer : B

Question 4

Which of the following describes the most correct call order of the ContentHandler interface methods when parsing the following "XML Document" using a non-validating SAX parser? This question reflects line feeds within the XML document.

[XML Document]

AstartDocument - startElement - characters - startElement - characters - characters - characters - endElement - characters - endElement - endDocument

BstartDocument - startElement - ignorableWhitespace - startElement - ignorableWhitespace - characters - ignorableWhitespace - endElement - ignorableWhitespace - endElement - endDocument

CstartDocument - startElement - startElement - characters - endElement - endElement - endDocument

DstartDocument - startElement - startElement - characters - characters - endElement - endElement - endDocumentW

Answer : A

Question 5

When receiving an XML document following the schema defined by TravelXML (portions modified for this question), the document is processed via SAX programming. Push the Exhibit Button to load the referenced "XML Schema".

When processing the following "XML Document" according to the method shown by "SAX

Processing," which of the following correctly describes the output results (print method output)?

[XML Document]

The root element name (document element name) is "BookingNotification".

The XML document follows the "XML Schema" definition.

There is no DTD for the XML Document.

The XML Document is comprised of elements and character data; comments and CDATA sections, etc. are not included.

The XML Document is indented, and includes ignorable white spaces such as line feeds and tabs before the start-tags.

[SAX Processing]

Use the following "ContentHandlerImpl" class, and parse the XML Document using SAX.

The SAX parser is namespace aware.

Assume no execution errors.}

AAll character data of elements can be output, ignorable white spaces are not output

BAll character data of elements can be output, and ignorable white spaces are also output

CA portion of character data of elements cannot be output

DNo character data of elements can be output

Answer : B

Question 6

Push the Exhibit Button to load the referenced "XSLT Style Sheet". Select which of the following correctly describes the output results of an XSLT transformation of the "XML Document" using the "XSLT Style Sheet".

[XSLT Style Sheet]

Note that the XSLT processor can output transformation results as a document. Line feeds and indents are not reflected.

[XML Document]

A<record>
<data value='89'/>
<data value='70'/>
</record>

B<record xmlns='urn:xmlmaster:B'>
<data value='89'/>
<data value='70'/>
</record>

C<record xmlns='urn:xmlmaster:B'>
<data B:value='89' xmlns:B='urn:xmlmaster:B'/>
<data B:value='70' xmlns:B='urn:xmlmaster:B'/>
</record>

D<record>
<data value='89' xmlns='urn:xmlmaster:A'/>
<data value='70' xmlns='urn:xmlmaster:A'/>
</record>

E<record>
<data B:value='89' xmlns='urn:xmlmaster:A' xmlns:B='urn:xmlmaster:B'/>
<data B:value='70' xmlns='urn:xmlmaster:A' xmlns:B='urn:xmlmaster:B'/>
</record>

Answer : B

Question 7

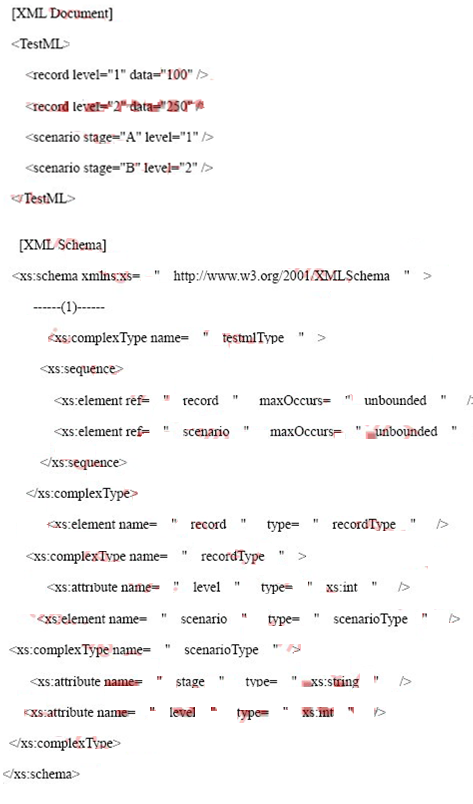

Push the Exhibit Button to load the referenced "XML Document". Choose the XML Schema Document that correctly defines the structure of "XML Document".

A<xs:schema
xmlns:xs= ' http://www.w3.org/2001/XMLSchema '
targetNamespace= ' urn:xmlmaster:testml '
xmlns:tns= ' urn:xmlmaster:testml ' >
<xs:element name= ' TestML ' type= ' tns:testmlType ' />
<xs:complexType name= ' testmlType ' >
<xs:sequence>
<xs:element ref= ' tns:record ' maxOccurs= ' unbounded ' />
</xs:sequence>
</xs:complexType>
<xs:element name= ' record ' type= ' tns:recordType ' />
<xs:complexType name= ' recordType ' >
< xs:attribute name='level' type= ' xs:int ' />
< xs:attribute name='data' type= ' xs:int ' />
</xs:complexType>
</xs:schema>

B<xs:schema
xmlns:xs= ' http://www.w3.org/2001/XMLSchema '
targetNamespace= ' urn:xmlmaster:testml '
xmlns:tns= ' urn:xmlmaster:testml ' >
<xs:element name= ' TestML ' type= ' tns:testmlType ' />
<xs:complexType name= ' tns:testmlType ' >
<xs:sequence>
<xs:element ref= ' tns:record ' maxOccurs= ' unbounded ' />
</xs:sequence>
</xs:complexType>
<xs:element name= ' record ' type= ' tns:recordType ' />
<xs:complexType name= ' tns:recordType ' >
< xs:attribute ref='tns:level' />
< xs:attribute ref='tns:data' />
</xs:complexType>
< xs:attribute name='tns:level' type= ' xs:int ' />
< xs:attribute name='tns:data' type= ' xs:int ' />
</xs:schema>

C<xs:schema
xmlns:xs= ' http://www.w3.org/2001/XMLSchema '
targetNamespace= ' urn:xmlmaster:testml '
xmlns:tns= ' urn:xmlmaster:testml ' >
<xs:element name= ' TestML ' type= ' tns:testmlType ' />
<xs:complexType name= ' testmlType ' >
<xs:sequence>
<xs:element ref= ' tns:record ' maxOccurs= ' unbounded ' />
</xs:sequence>
</xs:complexType>
<xs:element name= ' record ' type= ' tns:recordType ' />
<xs:complexType name= ' recordType ' >
< xs:attribute ref='tns:level' />
< xs:attribute ref='tns:data' />
</xs:complexType>
< xs:attribute name='level' type= ' xs:int ' />
< xs:attribute name='data' type= ' xs:int ' />
</xs:schema>

D<xs:schema
xmlns:xs= ' http://www.w3.org/2001/XMLSchema '
targetNamespace= ' urn:xmlmaster:testml '
xmlns:tns= ' urn:xmlmaster:testml ' >
<xs:element name= ' TestML ' >
<xs:complexType>
<xs:sequence>
<xs:element name= ' record ' maxOccurs= ' unbounded ' >
<xs:complexType>
<xs:attribute name= ' tns:level ' type= ' xs:int ' />
<xs:attribute name= ' tns:data ' type= ' xs:int ' />
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:schema>

Answer : C
